Contour V6-153 2.5L DOHC VIN L SFI (1997)

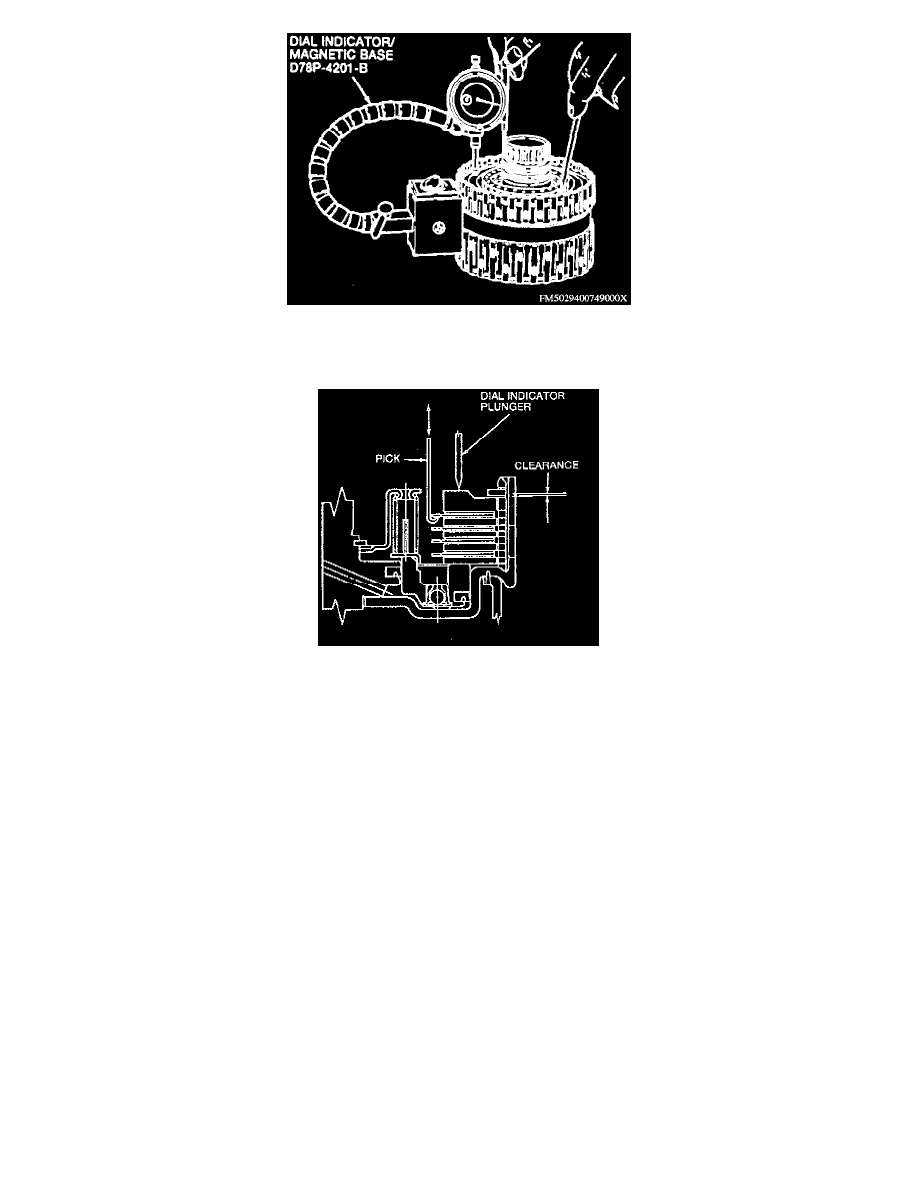

Dial Indicator Installation
^
Install a dial indicator on the side of the forward/coast/direct clutch cylinder assembly and zero the needle on the direct clutch pressure plate.
^
Use two picks to pull the direct clutch pressure plate upward. Observe the dial indicator reading.
^
Make a second measurement on the opposite side. Average the two measurements to get the clearance.
25. The standard clearance is 0.52 to 1.12 mm (0.02 to 0.04 inch). If the clearance is not within the specification, select and install the proper
thickness direct clutch pressure plate retainer snap ring to obtain the standard clearance.
Retaining Ring Thickness mm (inch)
1.28-1.38 (0.05-0.054)
1.39-1.49 (0.055-0.59)
1.52-1.62 (0.06-0.064)
1.65-1.75 (0.065-0.069)
