Page 10
background image

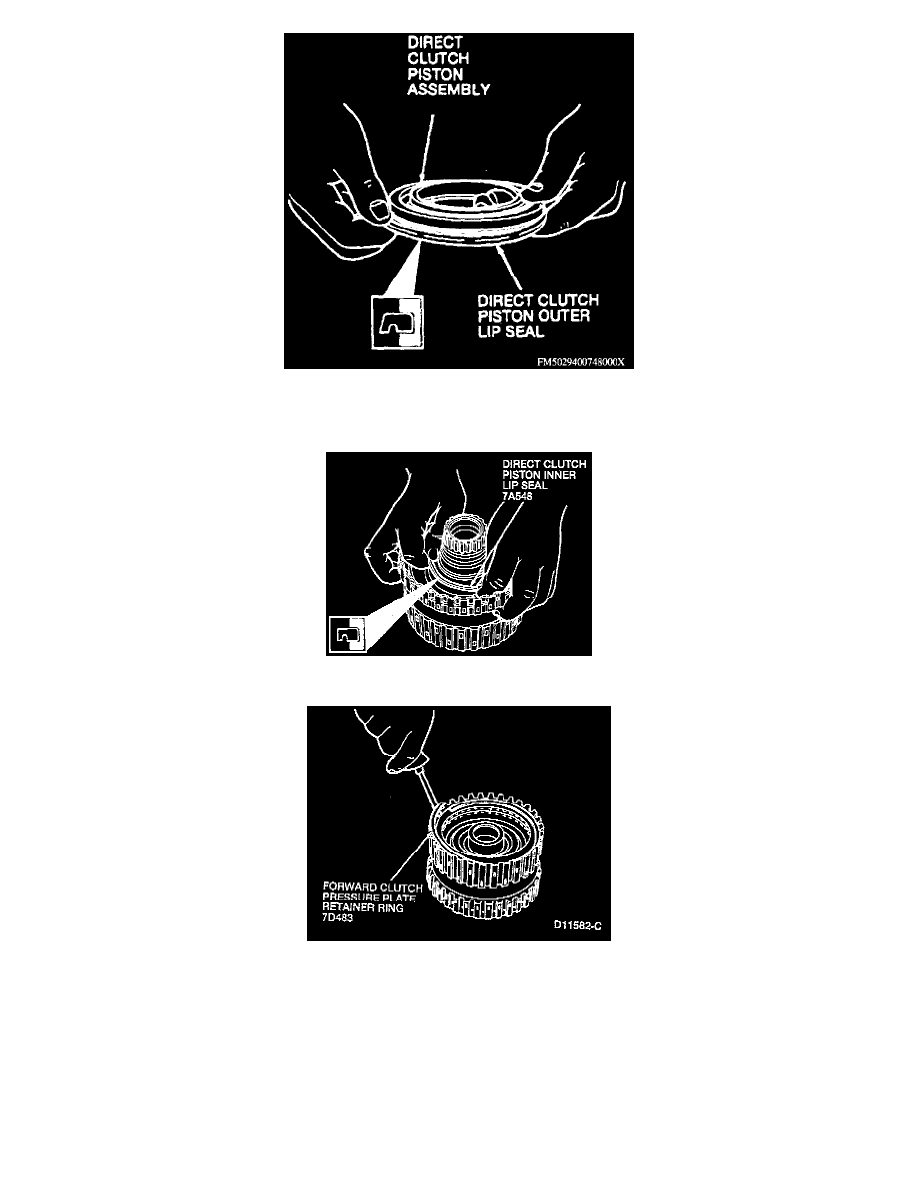

Direct Clutch Piston Outer Lip Seal Installation

7. Remove the direct clutch piston outer lip seal from the direct clutch piston assembly. Discard the seal.

8. Remove the direct clutch piston inner lip seal from the forward/coast/direct clutch cylinder assembly. Discard the seal.

9. Turn the forward/coast/direct clutch cylinder over. Remove the forward clutch pressure plate retaining ring
