Page 22
background image

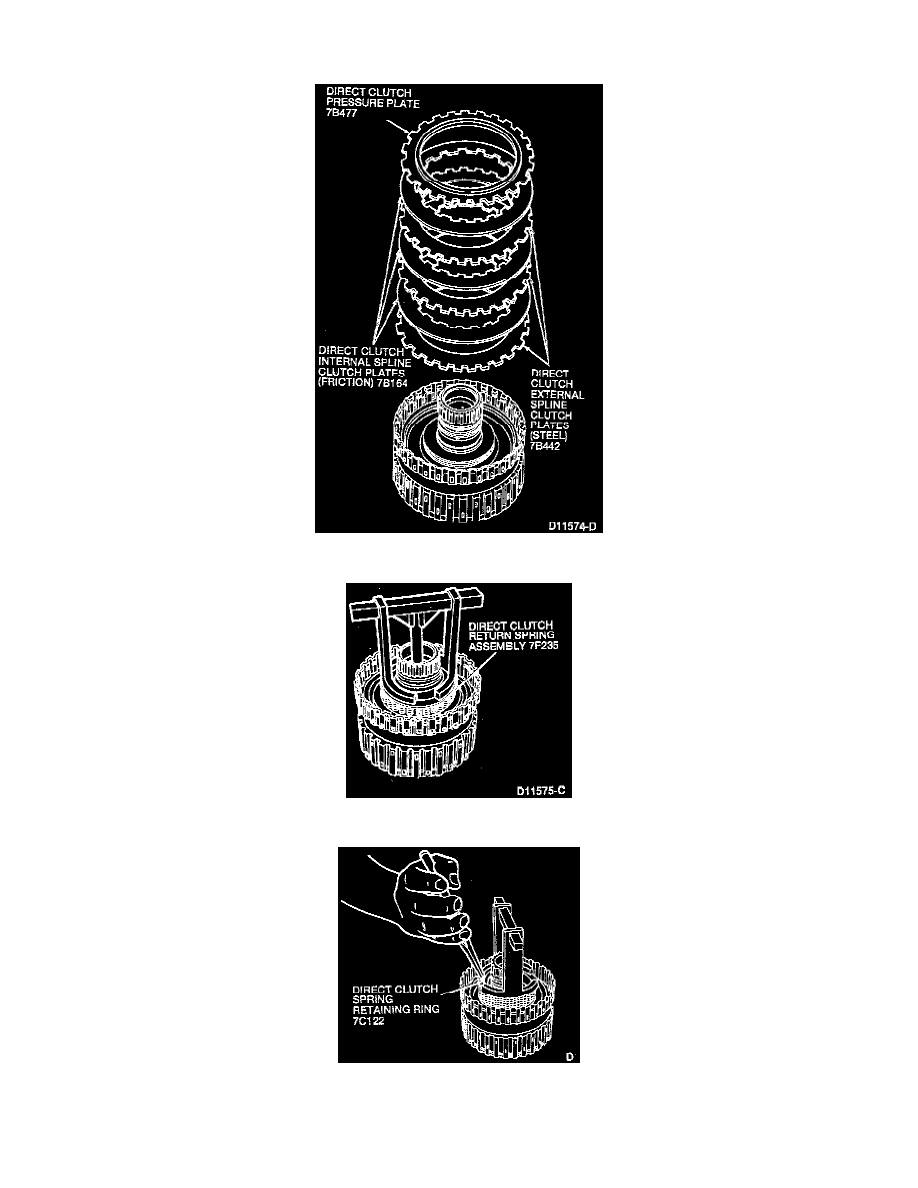

1. Remove the direct clutch pressure plate retaining ring.

2. Remove the direct clutch plates.

3. Use Clutch Spring Compressor T65L-77515-A to compress the direct clutch return spring assembly.

4. Use a pair of snap ring pliers to remove the direct clutch spring retaining ring.
