Page 29
background image

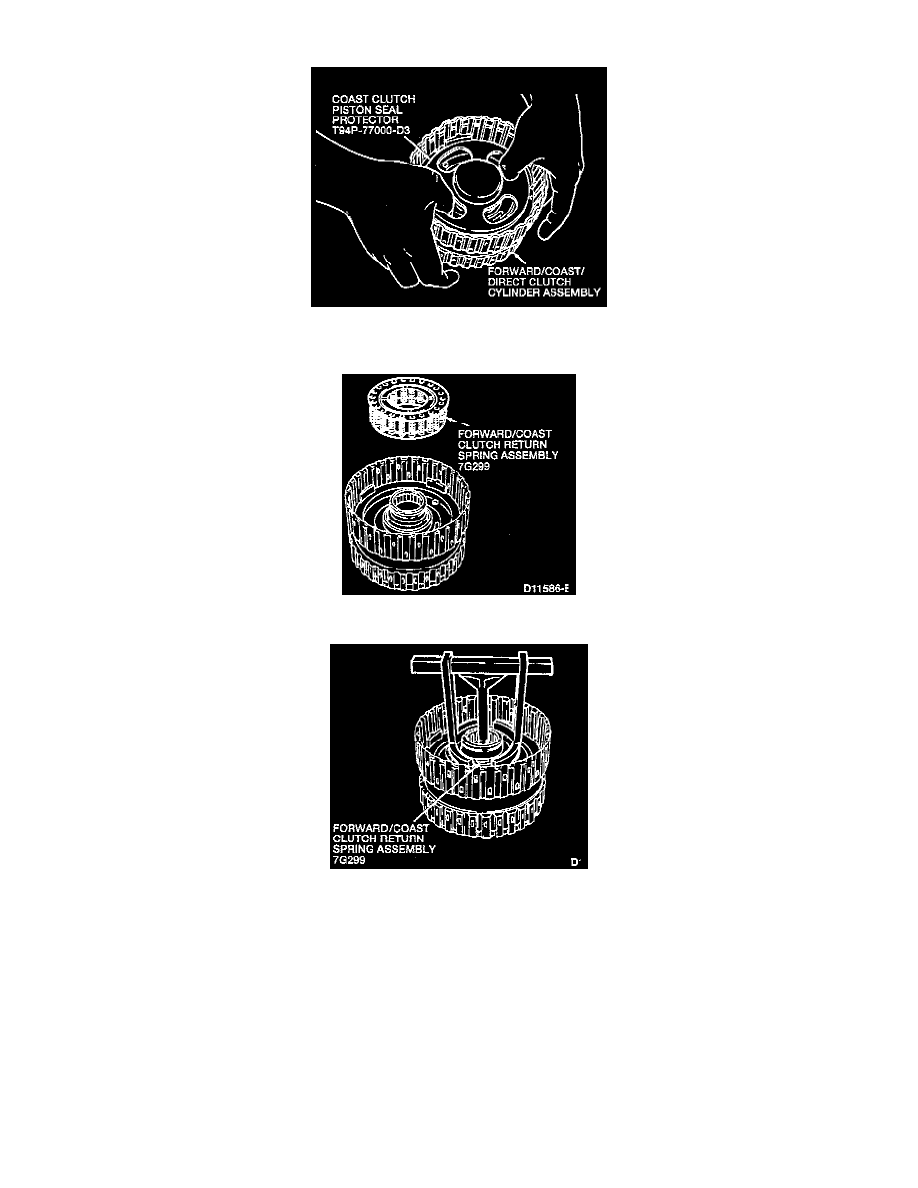

T94P-77000-D).

6. Use Coast Clutch Piston Seal Protector T94P-77000-D3 (part of Clutch Piston Seal Protector/Sizer Set T94P-77000-D) to install the coast clutch

piston into the forward clutch piston assembly.

7. Install the forward/coast clutch return spring assembly.

8. Use Clutch Spring Compressor T65L-77515-A to compress the forward/coast clutch return spring assembly.
