Page 50
background image

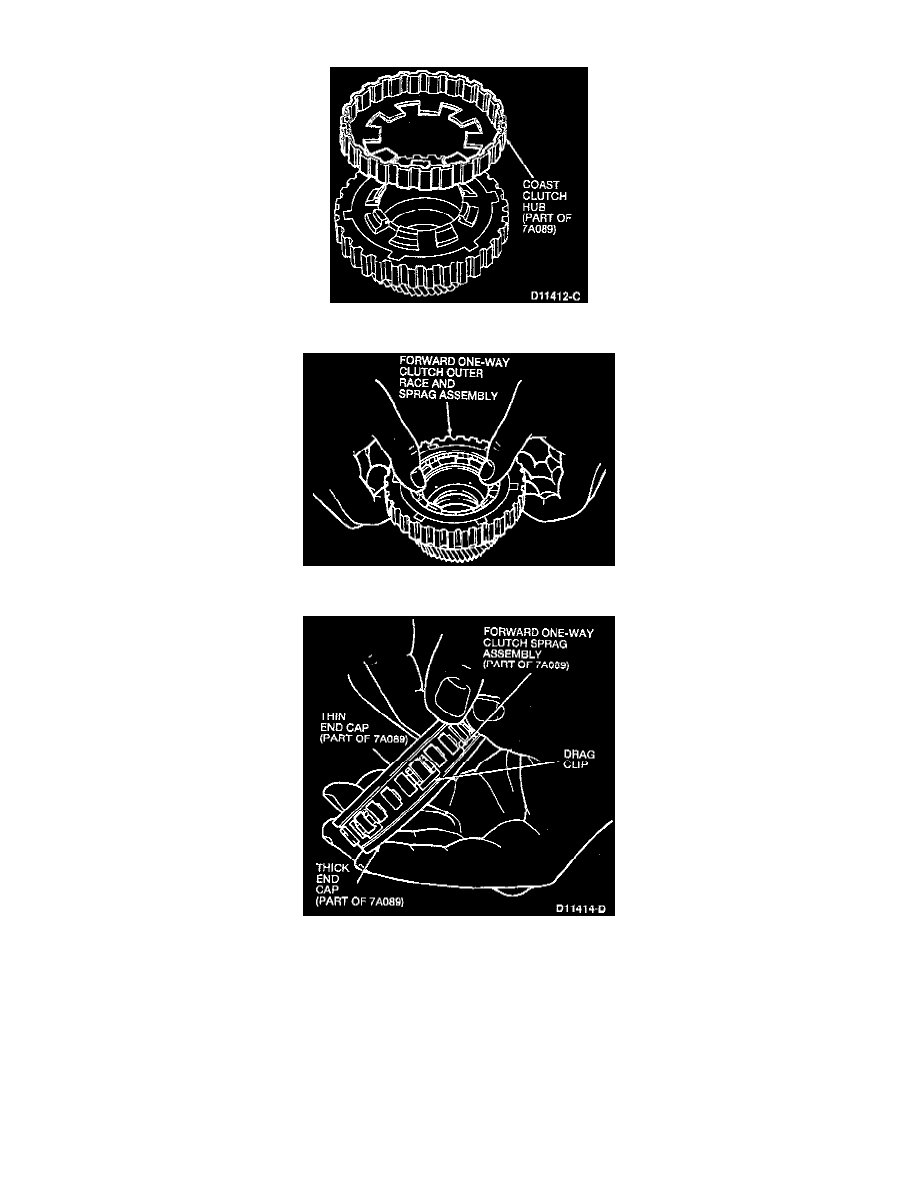

1. Carefully remove the coast clutch hub retaining ring.

2. Remove the coast clutch hub.

3. Remove the forward one-way clutch outer race and sprag assembly with end caps.

4. Separate the sprag assembly and end caps from the outer race. Note the position of the end caps. They are of different thickness and are not

interchangeable.
