Contour V6-153 2.5L DOHC VIN L SFI (1997)
3. Remove the roller assembly.
4. Clean all parts thoroughly in clean solvent and blow dry with moisture-free compressed air. Inspect the low one-way clutch parts for damage and
wear:
^
outer race
^
roller assembly
^
inner race
^
lube holes
ASSEMBLY

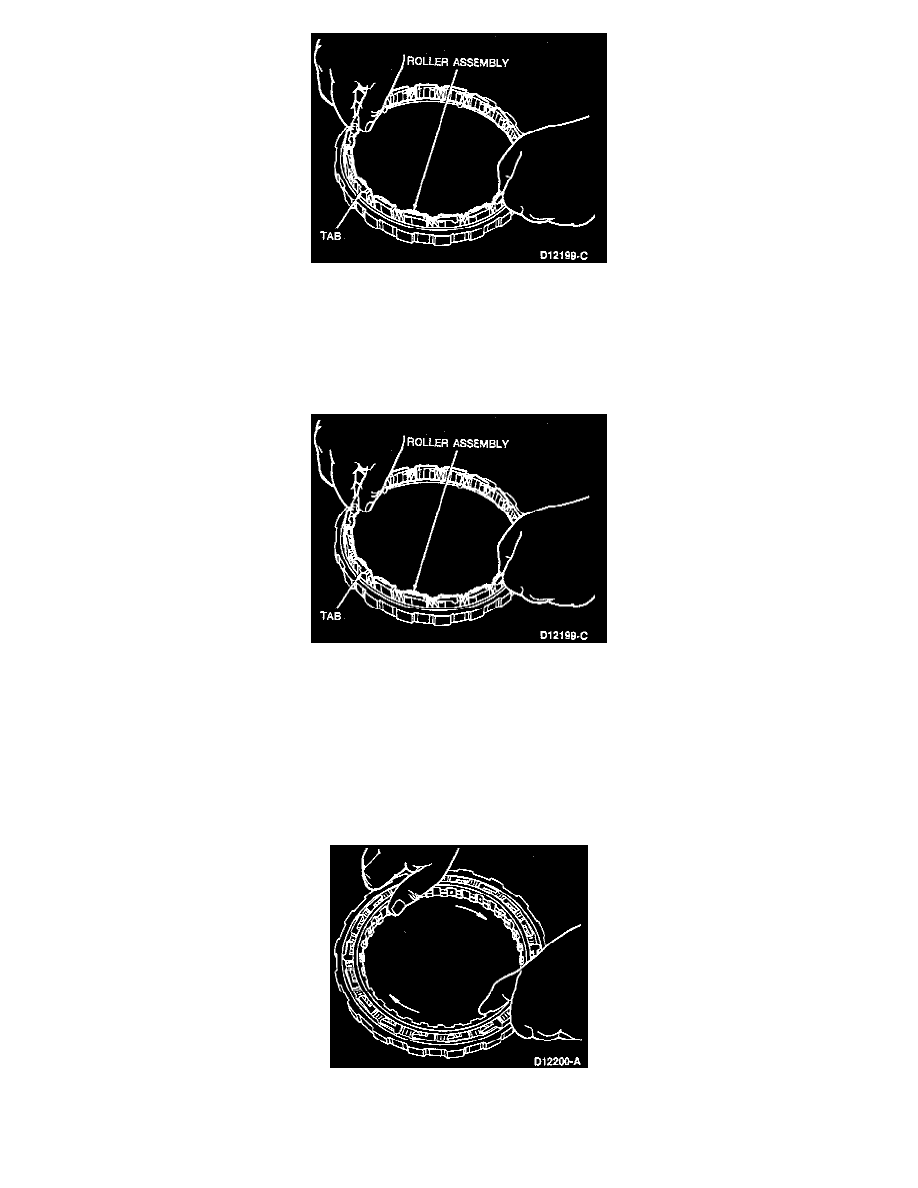

1. Install the roller assembly into the outer race.
NOTE: The outer tabs of the roller assembly must be facing up.
2. Install the inner race with the groove facing up.
CAUTION: The inner race groove must face up.
NOTE: To aid in inner race installation, rotate the inner race clockwise during installation.
3. Check the operation of the low one-way clutch as follows:
^
Hold the outer race.
^
Rotate the inner race clockwise. The inner race should rotate with a slight drag without attempting to rotate the outer race.
