Crown Victoria V8-4.6L (2009)
Power Mirror Motor: Service and Repair
Exterior Mirror Motor
Removal and Installation

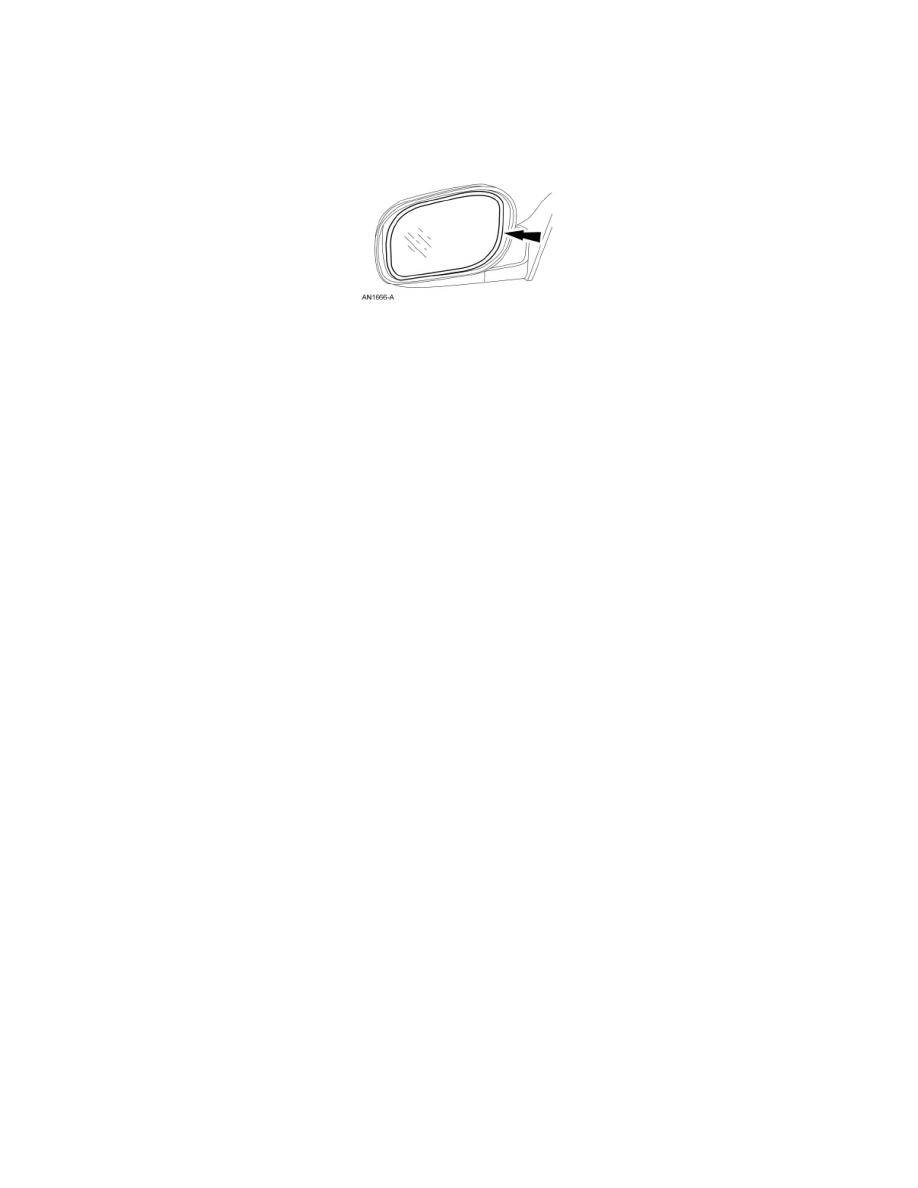

1. Remove the exterior mirror glass. For additional information, refer to Exterior Mirror Glass See: Service and Repair/Exterior Mirror Glass.
2. Remove the exterior mirror motor screws.
-
To install, tighten to 2 Nm (18 lb-in).
3. Disconnect the electrical connectors and remove the motor.
4. To install, reverse the removal procedure.
