Crown Victoria V8-4.6L Flex Fuel (2008)
Fuse Block: Application and ID

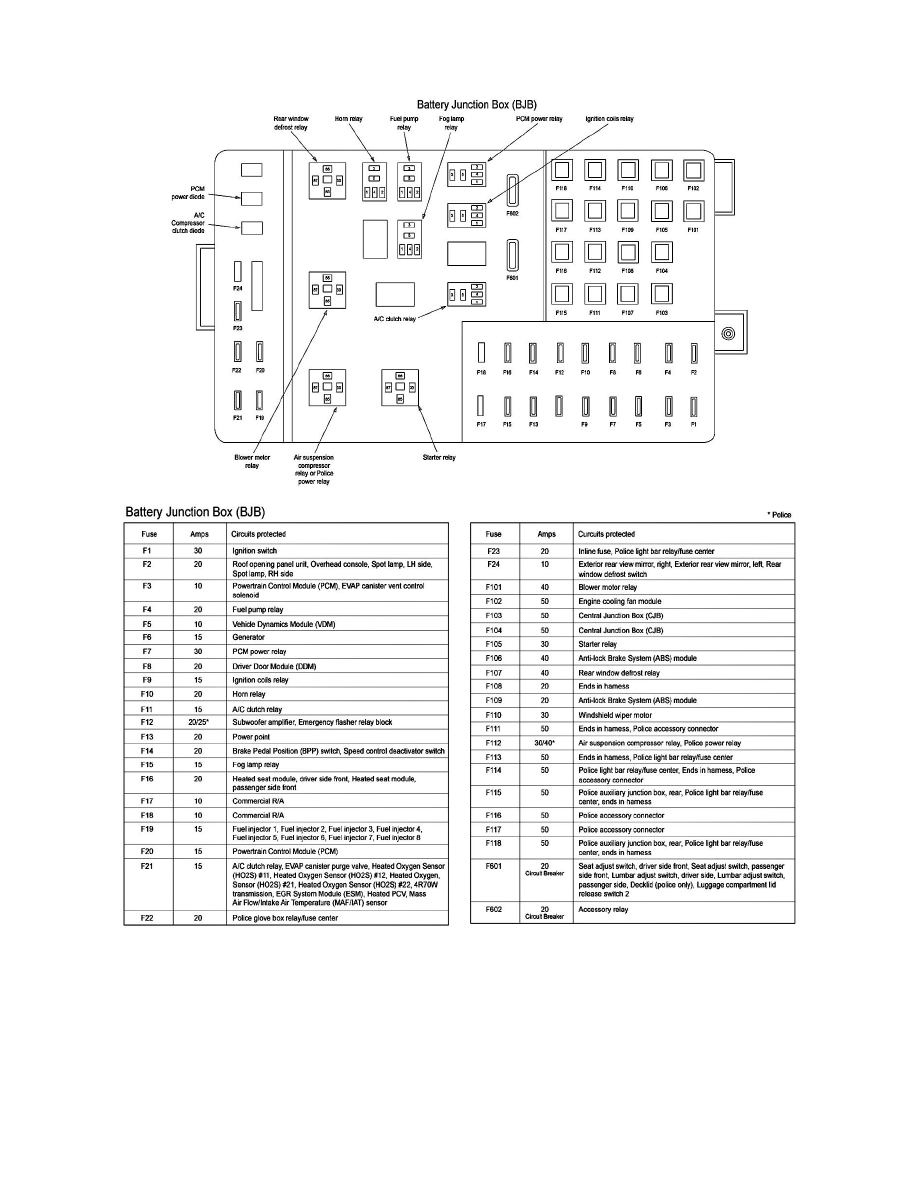

Battery Junction Box
Note: The battery junction box is located in the engine compartment.
Ford Workshop Service and Repair Manuals
Battery Junction Box|Page 4196 >
< Diagram Information and Instructions|Page 4193
Page 1
