Crown Victoria V8-4.6L Flex Fuel (2008)

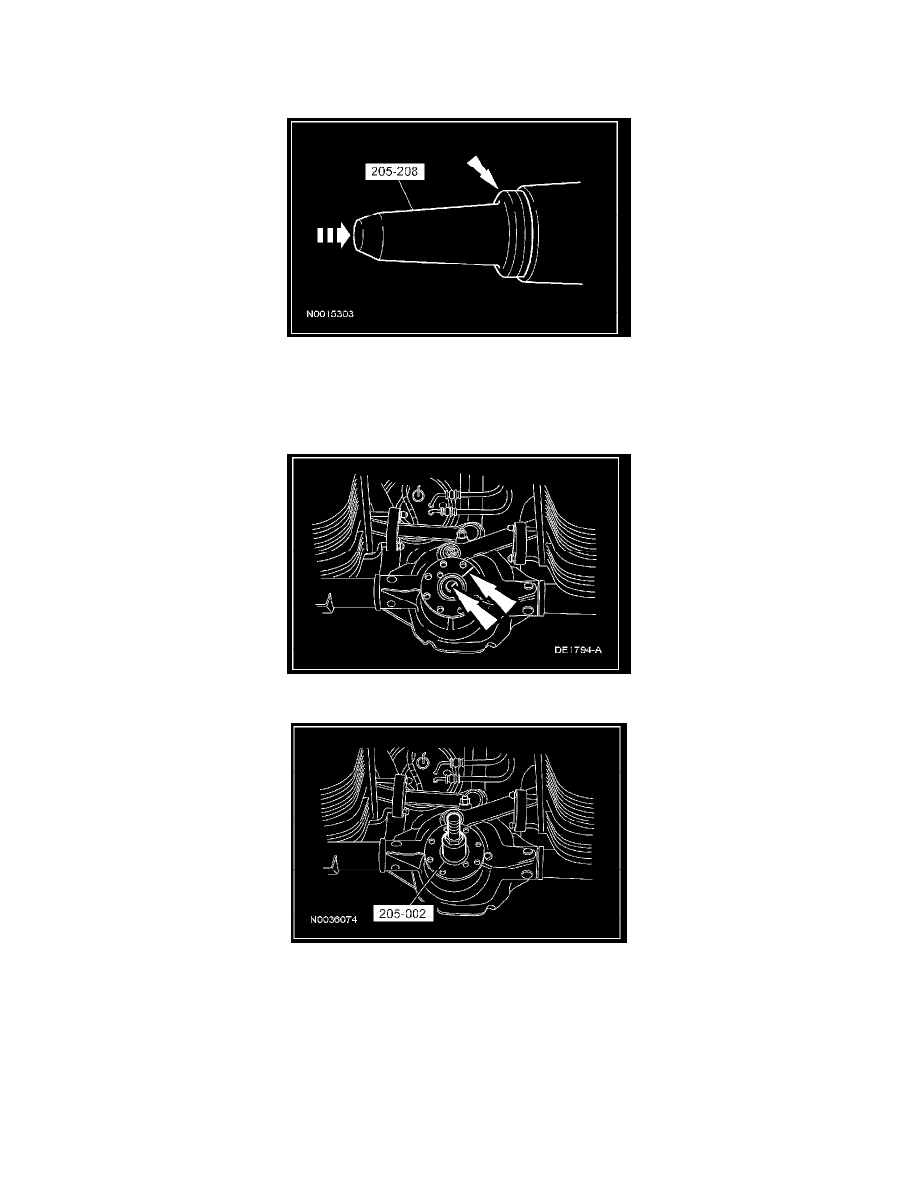

2. NOTE: If the rear axle drive pinion seal becomes misaligned during installation, remove the seal and install a new seal.
Using the special tool, install the rear axle drive pinion seal.
3. Lubricate the pinion flange splines with rear axle lubricant.
4. NOTE: Disregard the index marks if installing a new pinion flange.
Position the pinion flange.
5. Using the special tool, install the pinion flange.
6. Position the new drive pinion nut.
