Crown Victoria V8-4.6L SOHC VIN W (2005)
as shown during removal to obtain the same position.
2. NOTE: The front and rear height adjustment gears do not have to mesh with the seat track motor assembly gears at the same teeth as when
disassembled.

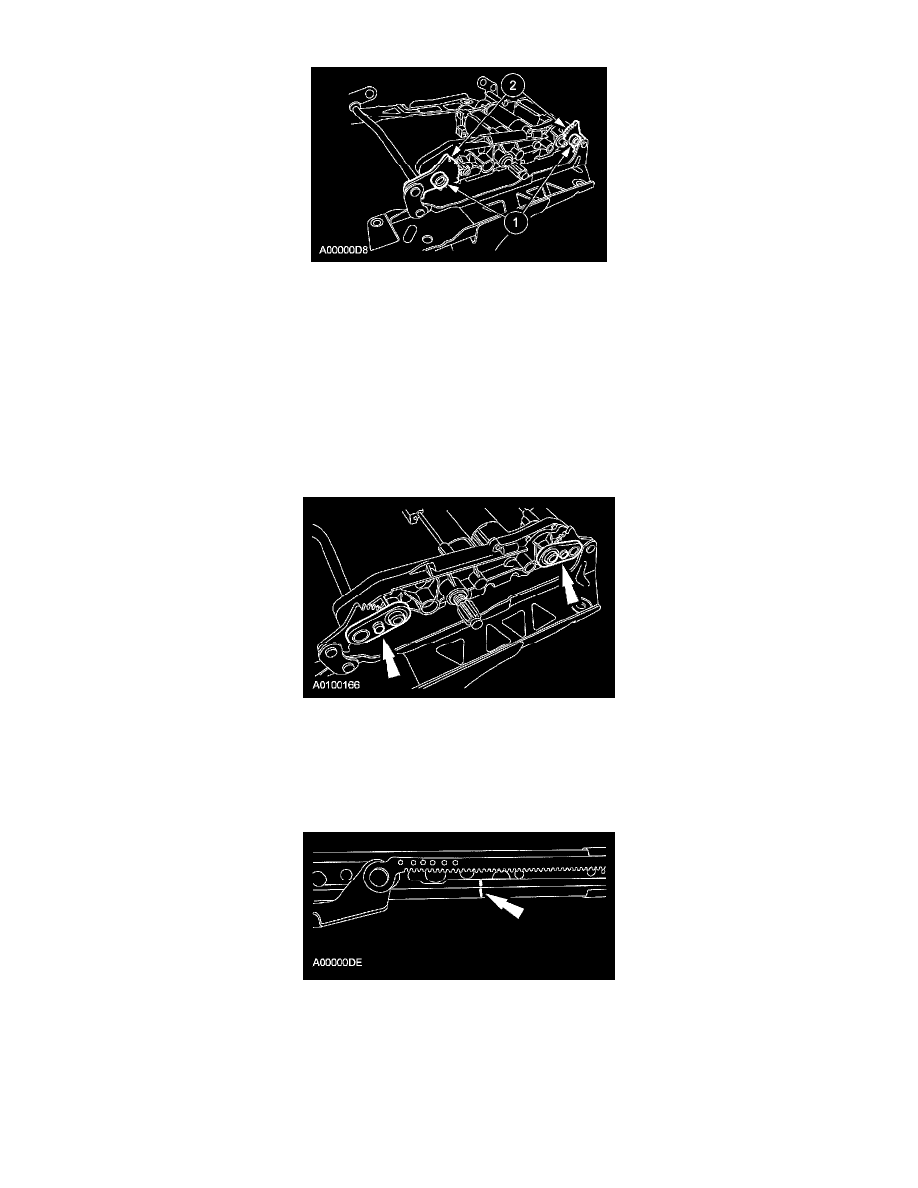

Install the seat track motor assembly to the upper support assembly.
1
NOTE: Make sure the motor is positioned right side up.
Install the seat track motor assembly pivots through the front and rear height adjustment gear brackets.
-
Apply multi-purpose grease to the motor pivots.
2
Mesh the seat track motor assembly gears to the front and rear height adjustment gears.
-
There should not be a gap between the upper support assembly gears and the seat track motor assembly housing.
3. WARNING: The support straps are load-bearing components during a crash event. The support straps must be correctly installed
during assembly of the seat track. Failure to follow these instructions may result in the failure of the seat to perform as designed with
resultant risk of personal injury to the vehicle occupant.
Install the support straps.
-
The support straps must fit flush against the front and rear height adjustment gears.
4. Check to make sure the index marks on the outboard track C-channel and plastic-coated slide are still in alignment.
