Crown Victoria V8-4.6L VIN V Flex Fuel (2006)
Arm Rest: Service and Repair
Removal and Installation

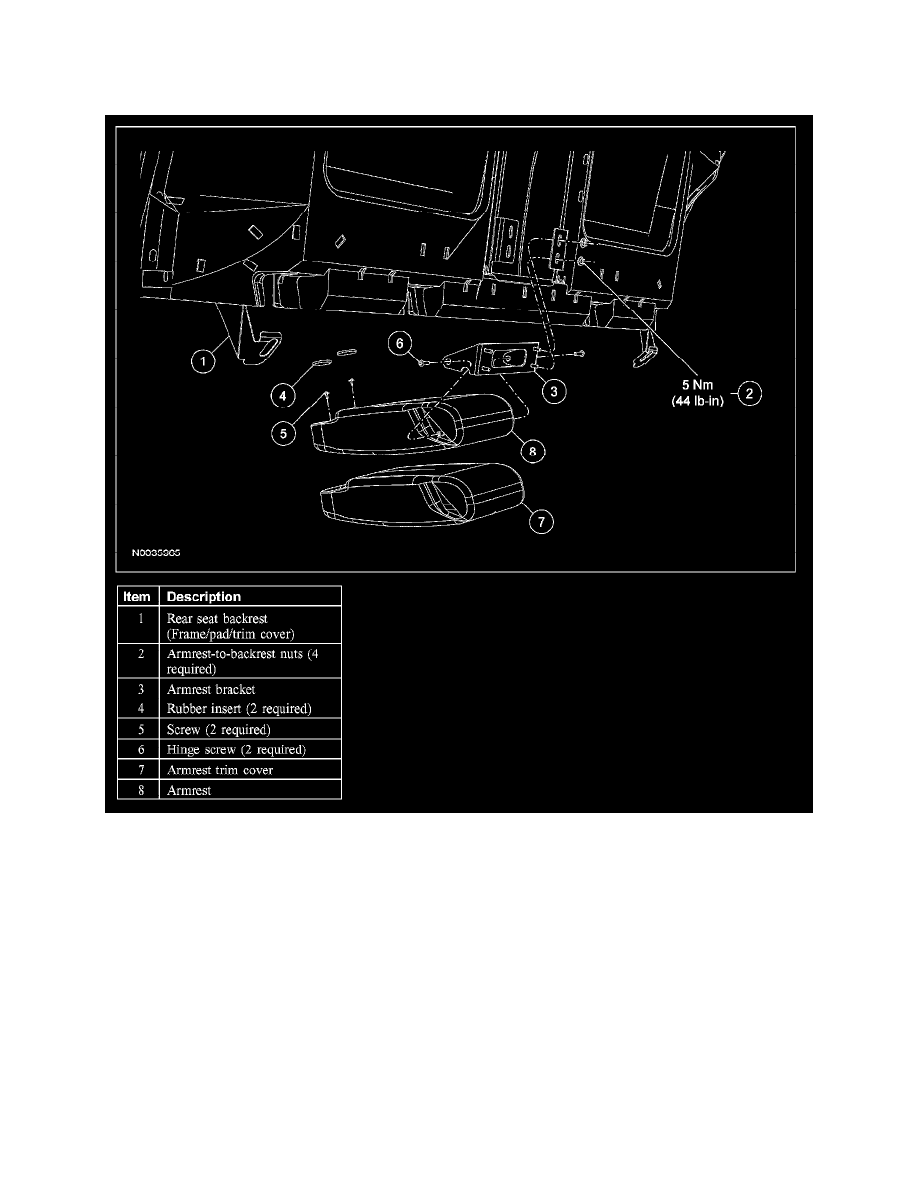

SEAT ARMREST - REAR
Removal and Installation
1. WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to Fire
Suppression System.
For police vehicles equipped with a fire suppression system, depower the system.
2. Remove the rear seat cushion and backrest.
3. Remove the 4 nuts.
-
To install, tighten to 5 Nm (44 lb-in).
4. Remove the armrest.
5. WARNING: The retaining wire in the rear seat cushion pad and frame and rear seat backrest pad and frame back must be fully seated
in the retainer brackets to prevent the seat backrest and seat cushion from sliding forward in the event of a collision. Failure to follow
these instructions may result in personal injury.
To install, reverse the removal procedure.
-
Make sure the safety belts and buckles are accessible to the occupants after installation.
