E 150 V8-4.6L (2007)
Rear Bumper: Service and Repair
BUMPER - REAR
Removal and Installation

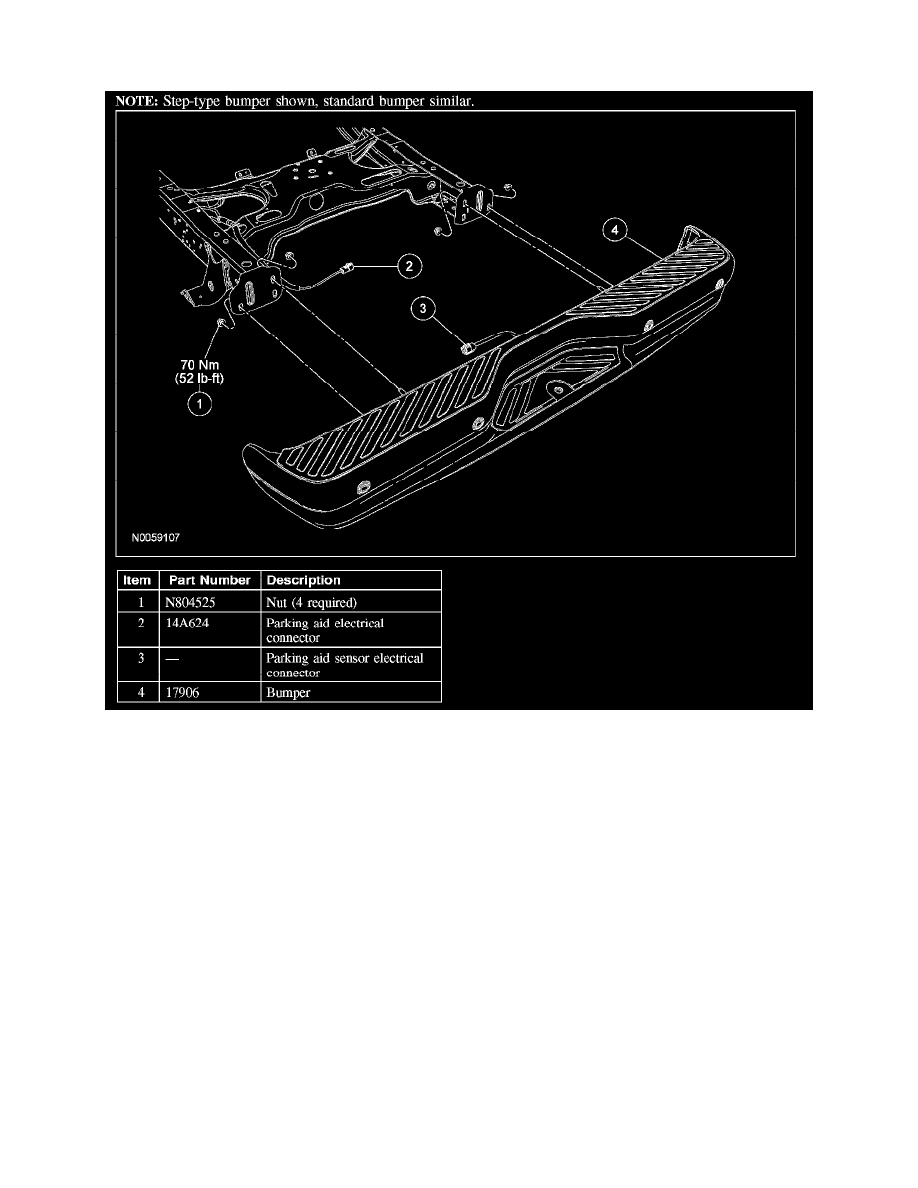

NOTE: Step-type bumper shown, standard bumper similar.
1. Remove the 4 retaining nuts from the rear bumper.
-
To install, tighten to 70 Nm (52 lb-ft).
2. Remove the rear bumper.
3. To install, reverse the removal procedure.
