E 150 V8-4.6L (2007)
Gasoline engine equipped vehicles

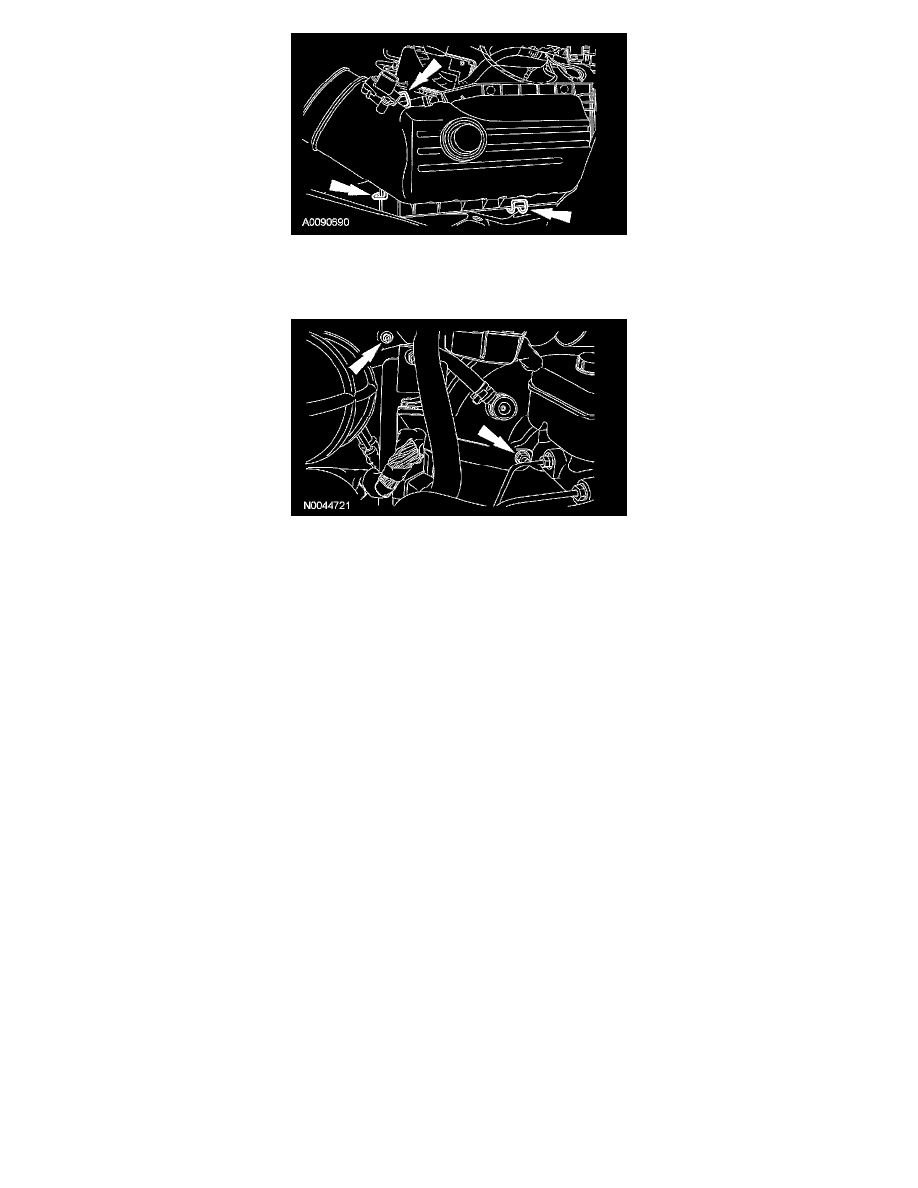

11. Remove the 2 powertrain control module (PCM) bracket nuts and position the PCM and bracket aside.
^
To install, tighten to 20 Nm (15 ft. lbs).
All vehicles
12. NOTE: The brake master cylinder nuts are a torque-prevailing type and cannot be reused.
Remove and discard the brake master cylinder nuts.
^
To install, tighten to 23 Nm (17 ft. lbs).
^
On vehicles with traction control and stability assist, tighten to 15 Nm (11 ft. lbs).
13. Remove the brake master cylinder.
14. To install, reverse the removal procedure.
^
Bleed the brake system.
