E 150 V8-4.6L (2007)
4. Position the camshaft sprocket and install the bolt in 2 stages.
^
Stage 1: Tighten to 40 Nm (30 ft. lbs).
^
Stage 2: Tighten an additional 90 degrees.
5.4L (2V) engine
5. Install the camshaft and the camshaft bearing caps in their original locations.
^
Lubricate the camshaft bearing caps with clean engine oil.
^
Position the camshaft bearing caps.
^
Install the bolts loosely.

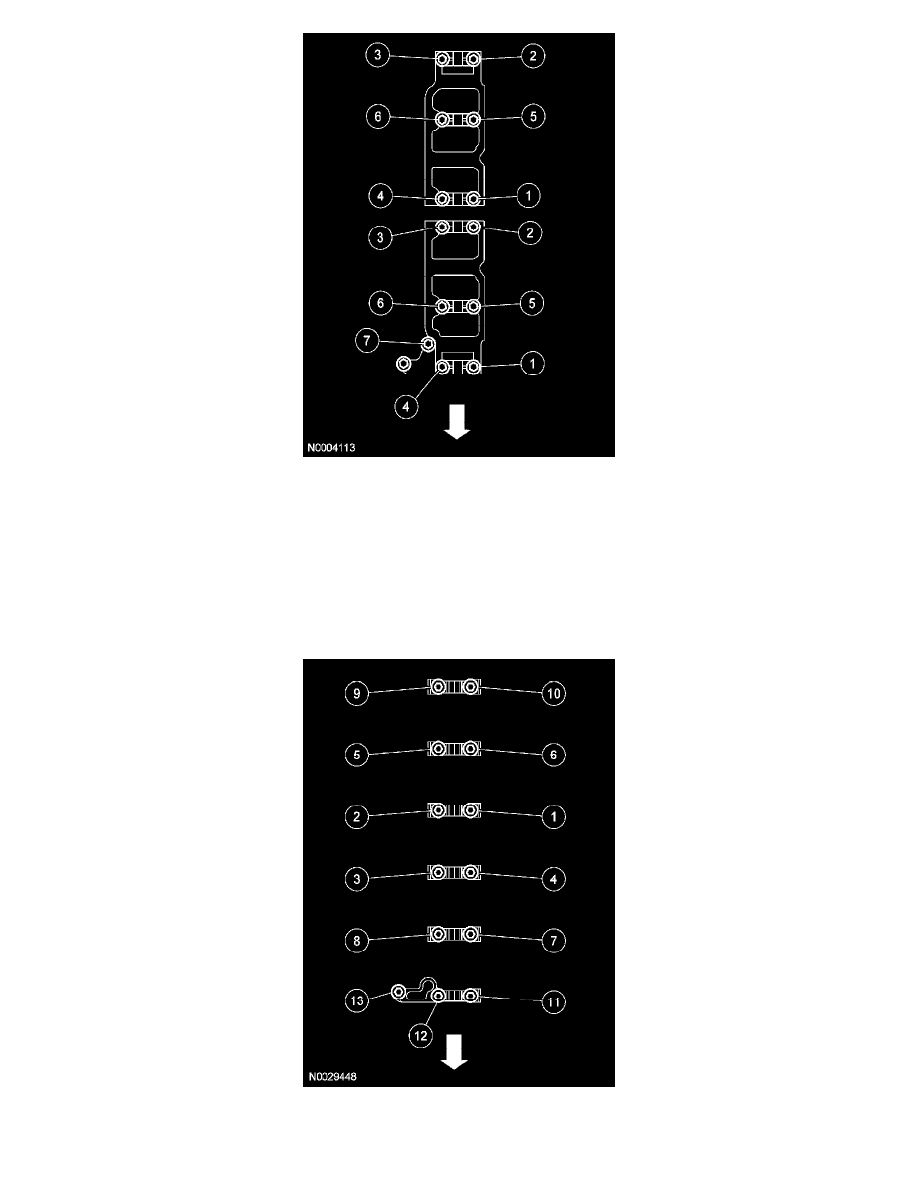

6. Tighten the bolts in the sequence shown.
All engines
7. Install the timing chains.
