E 150 V8-4.6L (2007)
Camshaft: Service and Repair

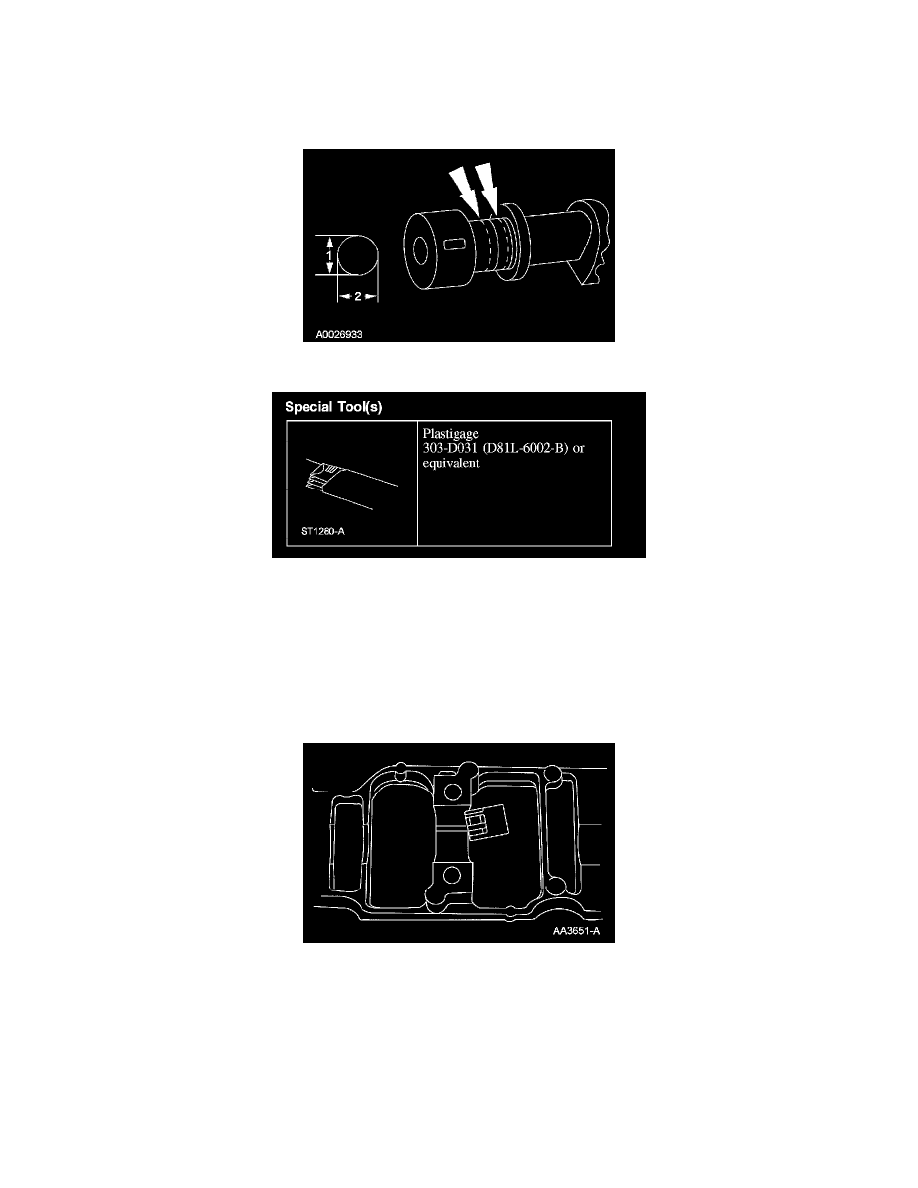

Camshaft Inspection
Camshaft Bearing Journal Diameter
1. Measure each camshaft journal diameter in 2 directions.
^
If out of specification, install new components as necessary.
Camshaft Journal to Bearing Clearance
Special Tool(s)
NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.
1. Remove the camshaft bearing cap and lay Plastigage across the surface.
2. NOTE: Do not turn the camshaft while carrying out this procedure.
Position the camshaft bearing cap and install the bolts.
3. Use Plastigage to verify the camshaft journal clearance.
^
If out of specification, install new components as necessary.
Camshaft End Play
