Drive Belt Tensioner: Diagrams

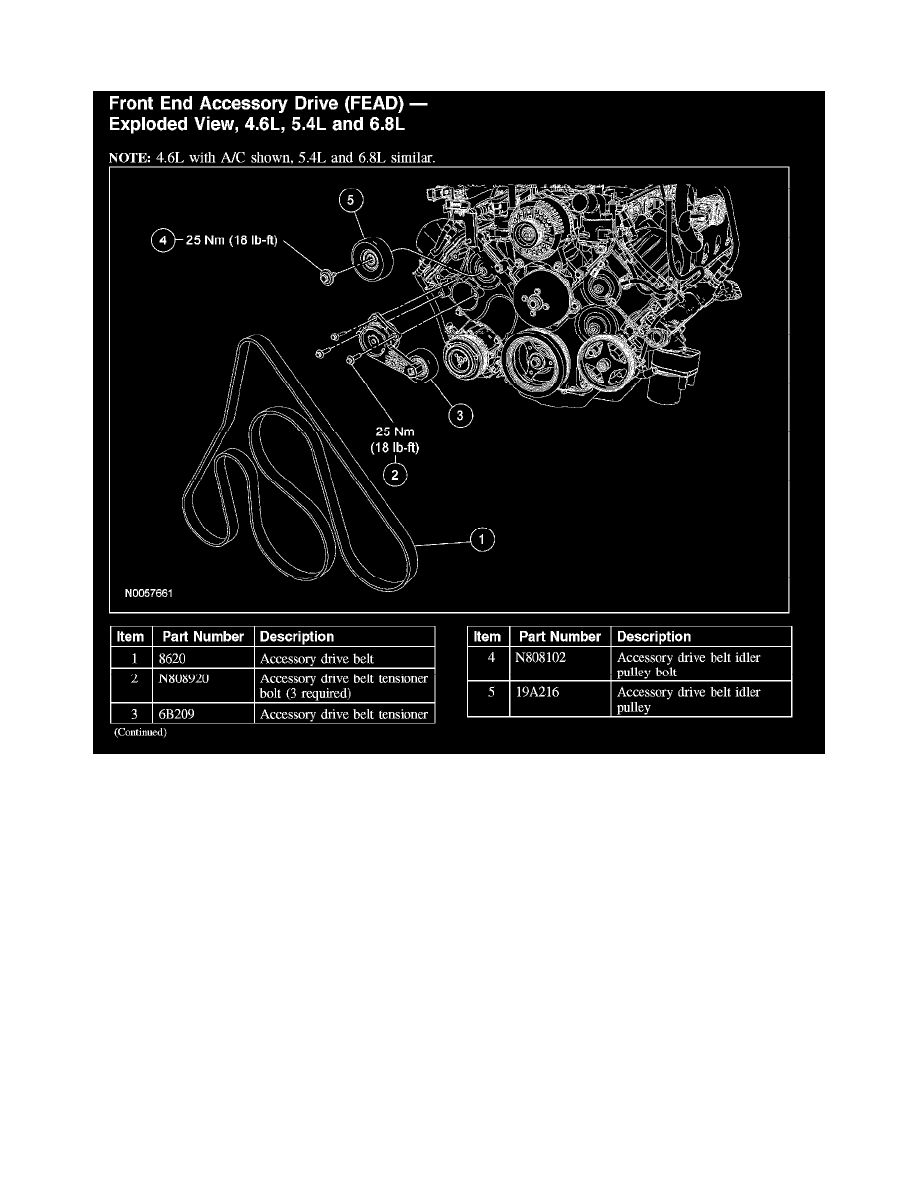

Front End Accessory Drive (FEAD) - Exploded View, 4.6L, 5.4L and 6.8L

Front End Accessory Drive (FEAD) - Exploded View, 4.6L, 5.4L and 6.8L (With A/C)
