E 150 V8-4.6L (2007)
9. Connect the wiring harness retainer to the rear of the RH cylinder head.
10. Connect the 8 fuel injector electrical connectors.
11. Connect the PCV coolant hose to the TB adapter.
12. Connect the vacuum harness connector to the intake manifold.
13. Connect the EVAP system vapor tube quick connect coupling to the intake manifold. For additional information, refer to Fuel Delivery and Air
Induction.
14. Connect the fuel pressure and temperature sensor electrical connector.
15. Using a new gasket, position the EGR system module and install the 2 bolts.
^
Tighten to 25 Nm (18 ft. lbs).
16. Position the exhaust manifold-to-EGR system module tube and connect the upper and lower fittings.
^
Tighten to 42 Nm (31 ft. lbs).
17. Connect the EGR system module vacuum hose and electrical connector.
18. Connect the crankcase vent tube quick connect coupling to the LH valve cover. For additional information, refer to Fuel Delivery and Air
Induction.

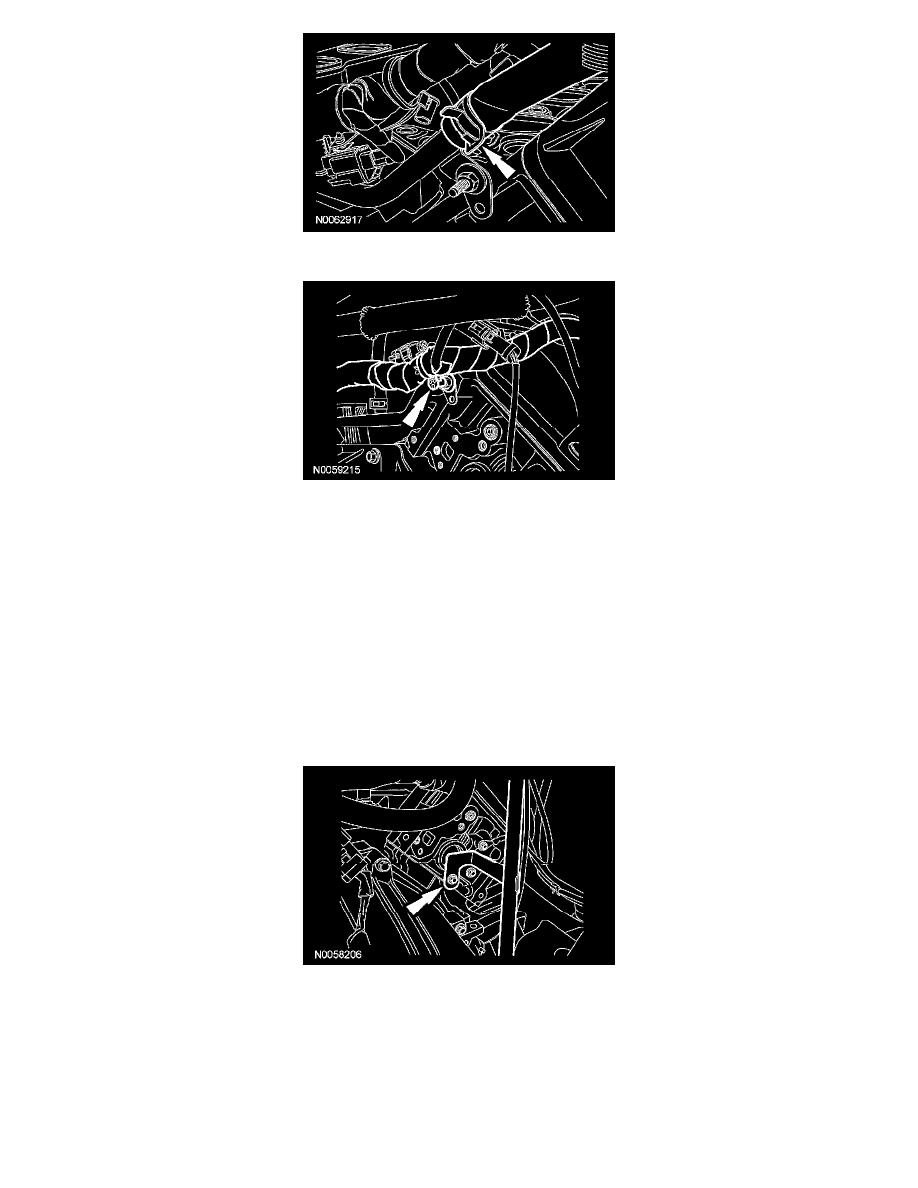

19. Install the transmission fluid level indicator and tube bolt.
^
To install, tighten to 28 Nm (21 ft. lbs).
20. Install the transmission fluid level indicator and tube nut.
^
Tighten to 10 Nm (89 lb-in)
