E 150 V8-4.6L (2007)

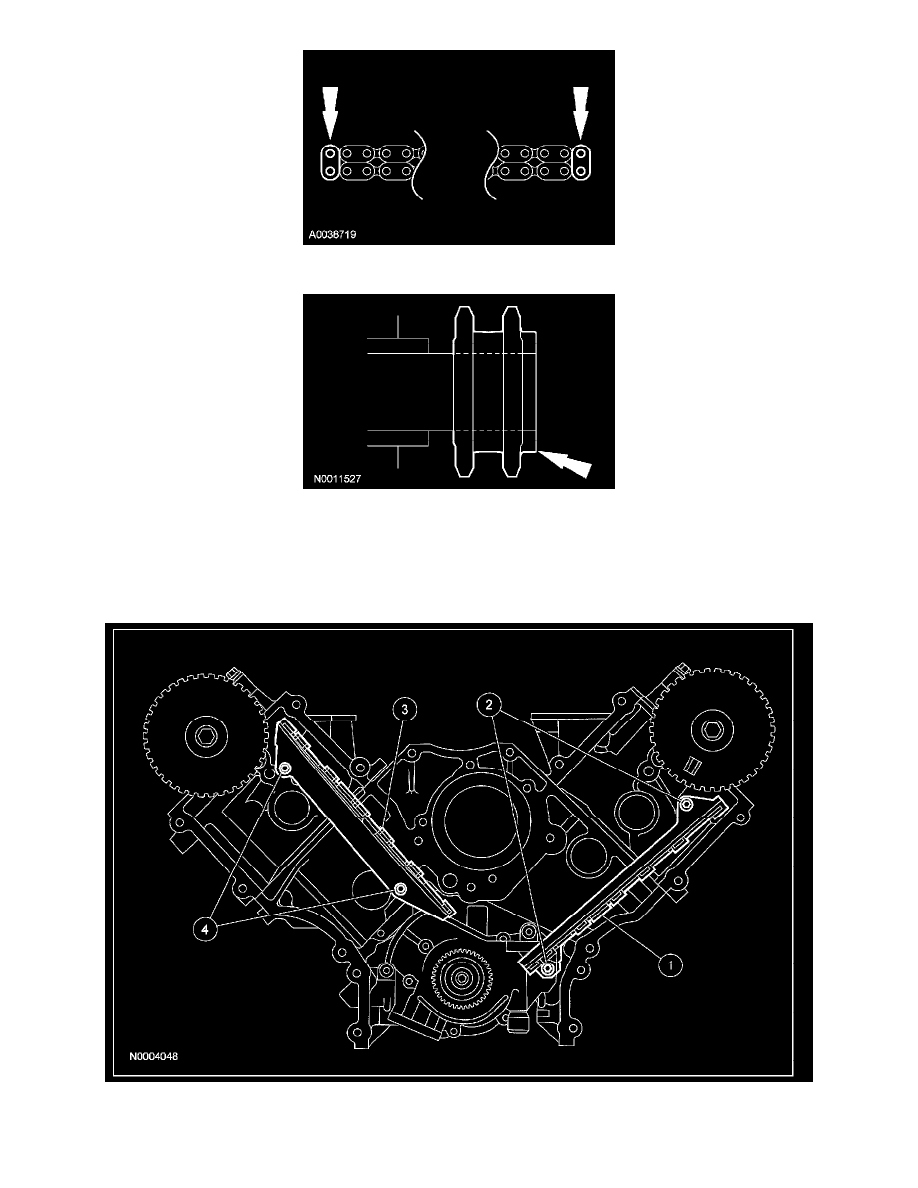

4. Install the crankshaft sprocket, making sure the flange faces forward.
5. Install the timing chain guides.
1
Position the LH timing chain guide.
2
Install and tighten the LH bolts.
3
Position the RH timing chain guide.
4
Install and tighten the RH bolts.
^
Tighten to 10 Nm (89 inch lbs).
6. CAUTION: Unless otherwise instructed, do not rotate either the crankshaft or the camshafts, when the timing chains are removed and
the cylinder heads are installed. Severe piston and valve damage will occur.
