E 150 V8-4.6L (2007)

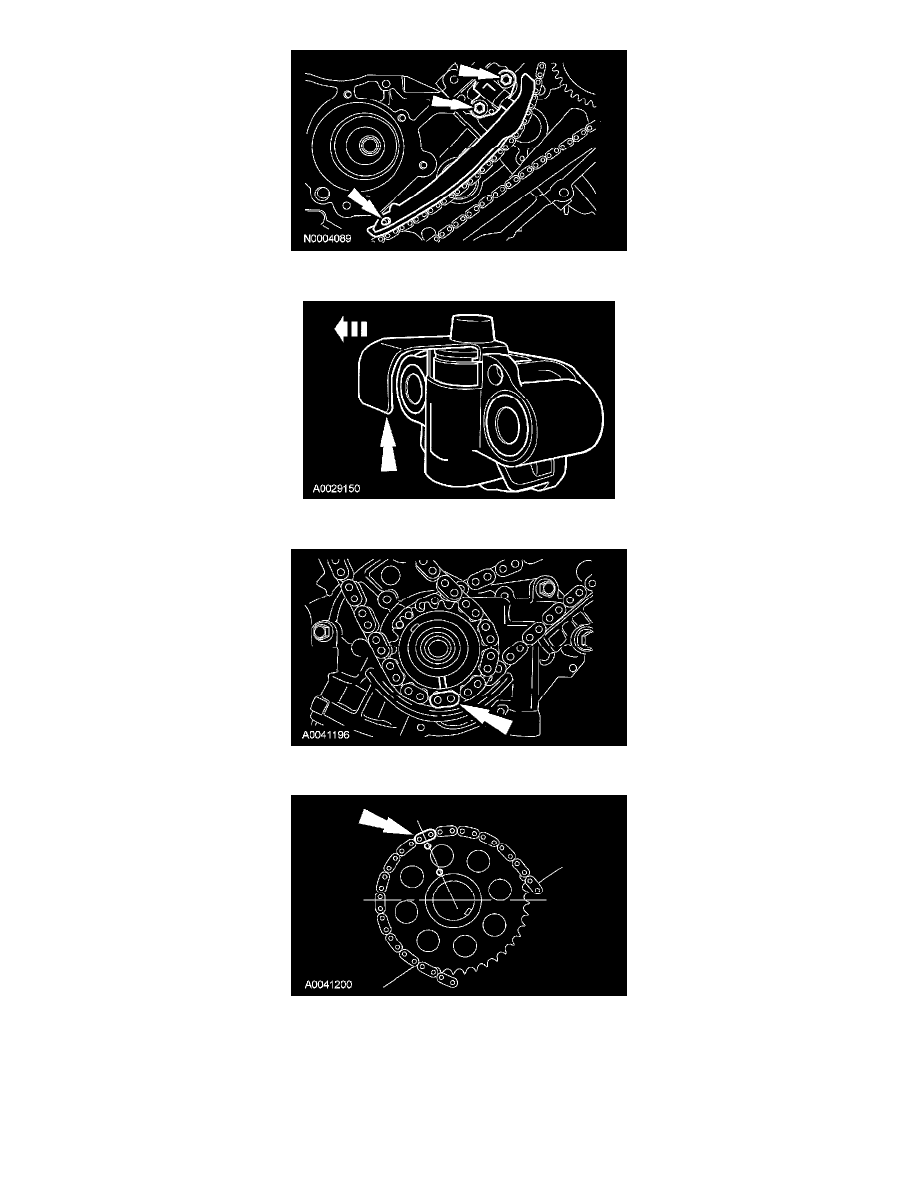

11. Remove the retaining clip from the LH timing chain tensioner.
12. Position the RH (outer) timing chain on the crankshaft sprocket, aligning the copper (marked) link with the timing mark on the sprocket.
13. Install the RH timing chain on the camshaft sprocket, aligning the copper (marked) link with the timing marks on the sprocket.
14. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner.
^
Tighten to 25 Nm (18 ft. lbs).
