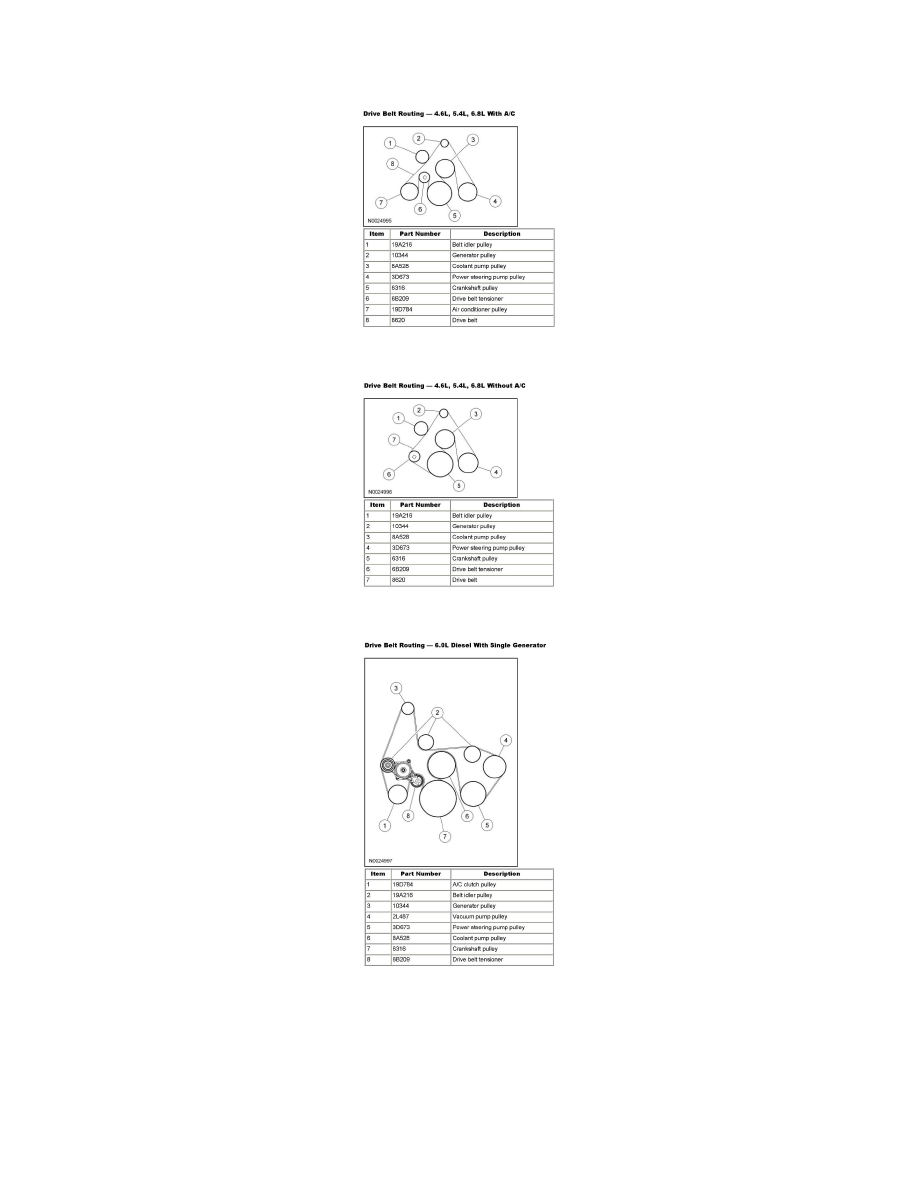

Drive Belt: Diagrams

Accessory Drive

4.6L, 5.4L, 6.8L With A/C

4.6L, 5.4L, 6.8L Without A/C

6.0L Diesel With Single Generator
