E 150 V8-4.6L (2007)
Ignition Coil: Service and Repair
IGNITION COIL-ON-PLUG

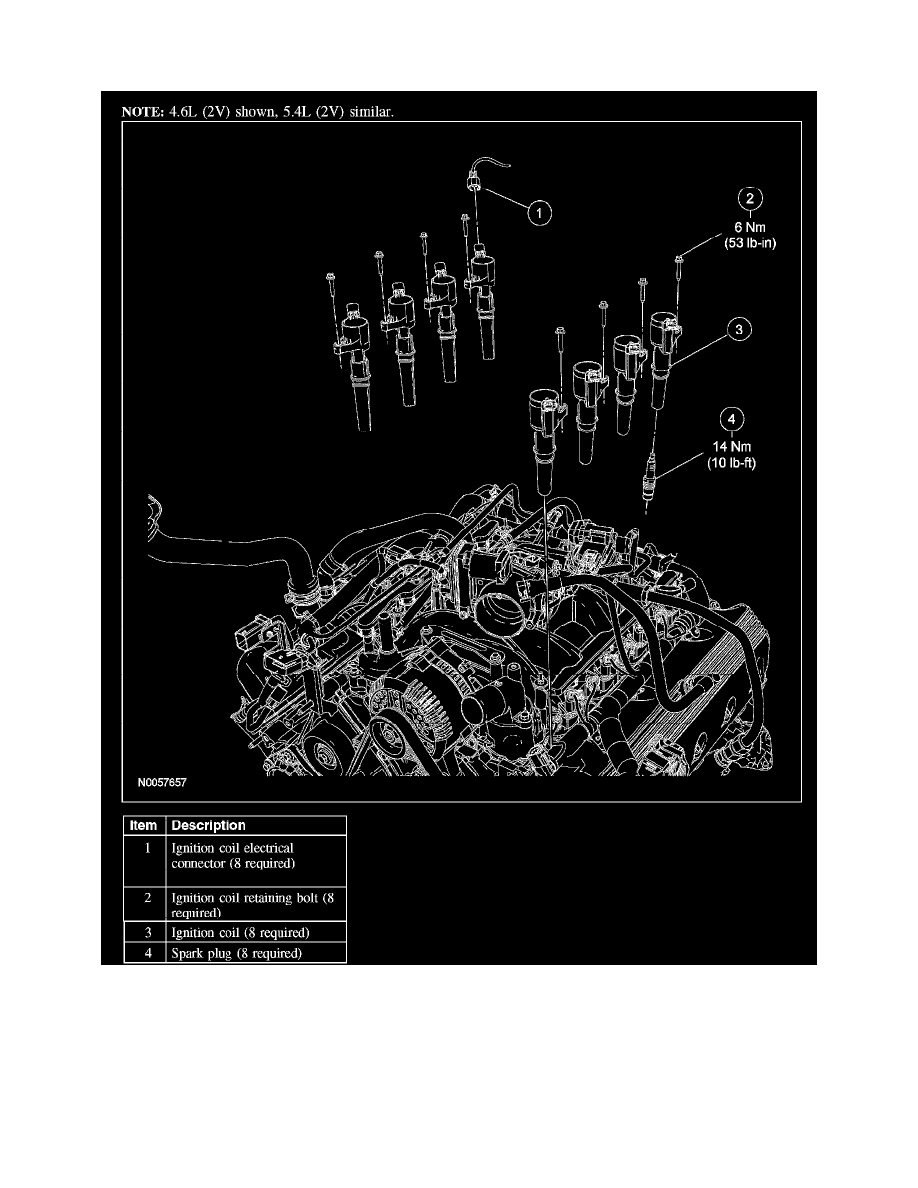

Exploded View
Removal and Installation
1. Remove the engine cover.
2. Remove the air cleaner assembly.
3. Disconnect the ignition coil electrical connector.
4. Remove the bolt and the ignition coil.
-
To install, tighten to 6 Nm (53 lb-in).
5. To install, reverse the removal procedure.
