E 250 V10-6.8L VIN S (2005)
Evaporative Emission Control Canister: Service and Repair
EVAPORATIVE EMISSION CANISTER
Removal and Installation
WARNING: The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still
presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark
occurring, possibly causing a fire or explosion if fuel vapor or liquid fuel is present in the area. Failure to follow these instructions may result in
personal injury.
All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the spare tire.

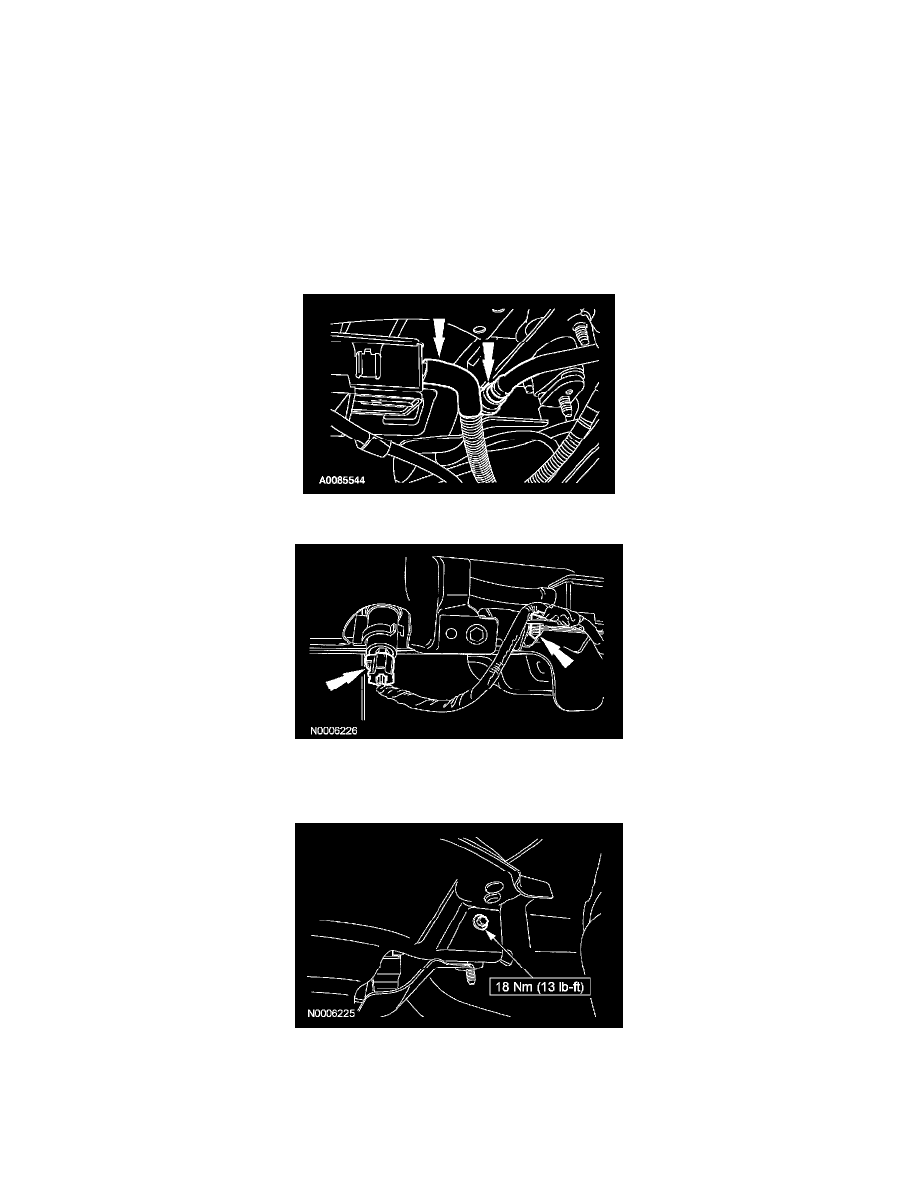

4. Disconnect the evaporative emissions (EVAP) hose and tube.
5. Disconnect the EVAP canister vent solenoid electrical connector and harness retainer.
Van/wagon vehicles
6. Remove the heat shield bolt.
