E 250 V10-6.8L VIN S (2005)
Pinion Flange: Service and Repair
8.8-Inch Ring Gear
Drive Pinion Flange

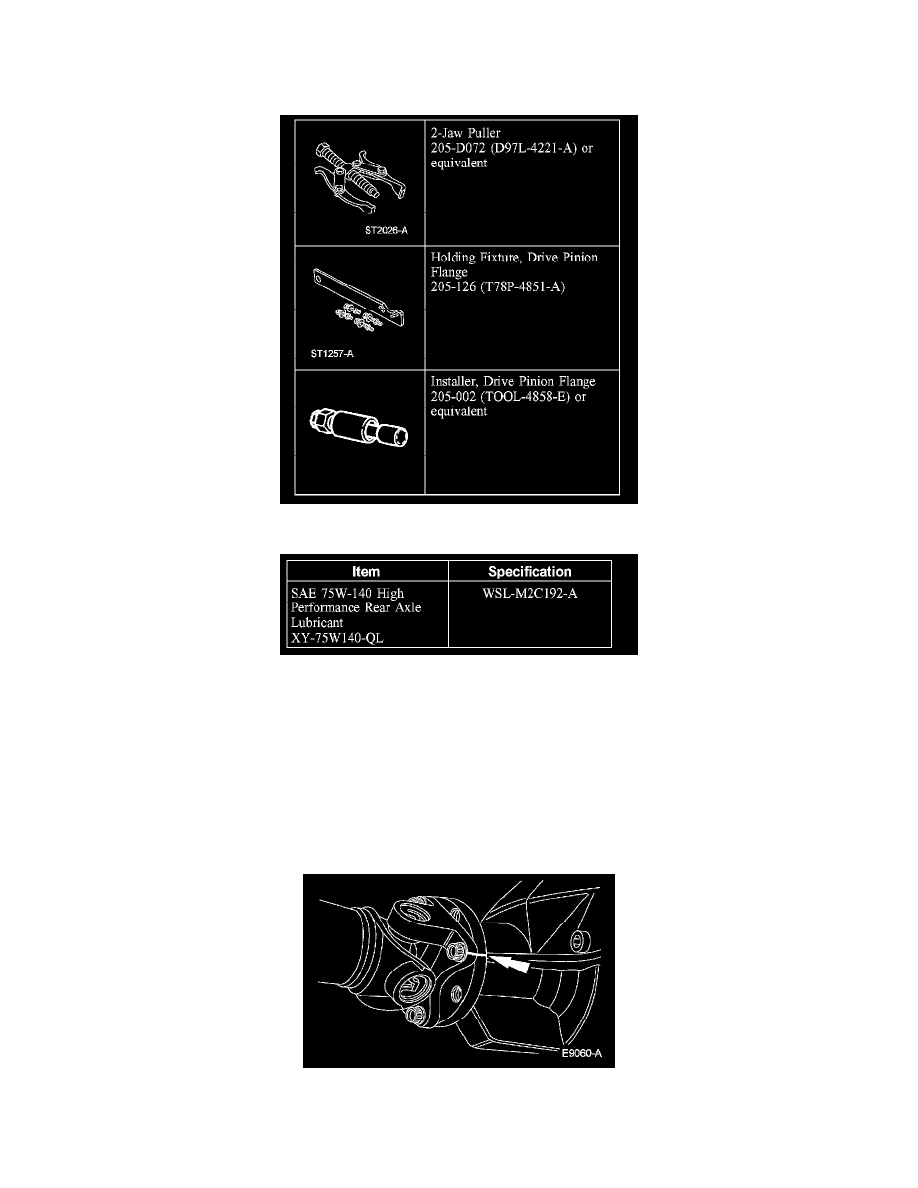

Special Tool(s)
Material
Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the rear wheel and tire assemblies.
3. CAUTION: Remove the brake calipers to prevent brake drag during drive pinion bearing preload adjustment.
CAUTION: Never allow the rear disc brake caliper to hang from the brake hose. Provide suitable support.
Remove the disc brake calipers.
4. Mark the driveshaft flange and pinion flange for correct alignment during installation.
