E 250 V8-4.6L SOHC VIN W (2004)
Rear Door Interior Handle: Service and Repair
Double Latch
INTERIOR DOOR HANDLE - SIDE AND REAR, DOUBLE LATCH

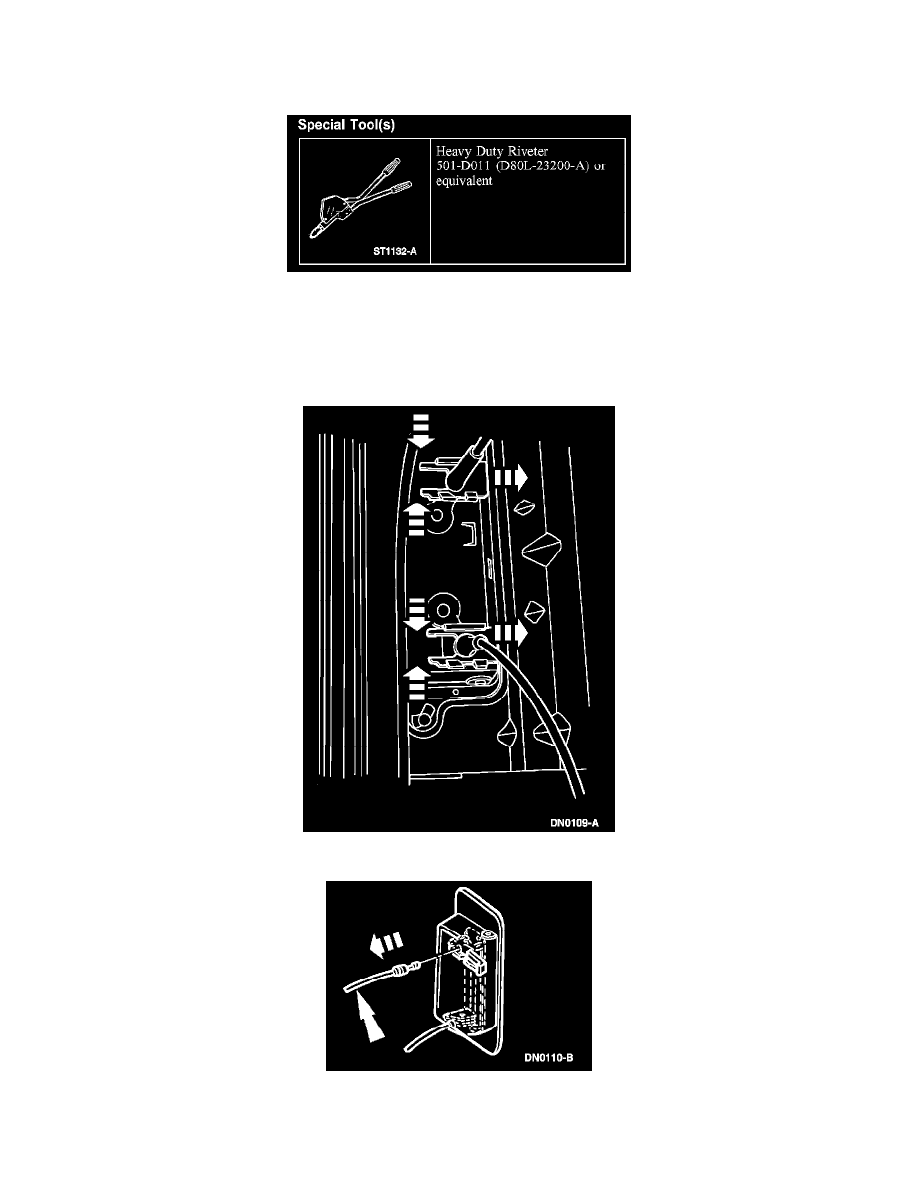

Heavy Duty Riveter
SPECIAL TOOL(S)
REMOVAL
1. If required, remove the door trim panel.
2. Release the actuating cable by pushing the bottom keeper of the clips upward and sliding the clip toward the outside of the door.
3. Disconnect the actuating cables.
