E 250 V8-4.6L SOHC VIN W (2004)
Evaporator Core: Service and Repair
Mail Climate Control
EVAPORATOR CORE
REMOVAL
CAUTION: Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) should be used to lubricate R-134a refrigerant
system O-ring seals only and should not be added to R-134a refrigerant systems as an A/C compressor lubricant. PAG Refrigerant Compressor
Oil F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B only should be used as an A/C
compressor lubricant.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of
system contamination from a failed A/C compressor or damage to the suction accumulator.
All vehicles
1. Recover the refrigerant.
2. Disconnect the battery.
Vehicles with 4.6L, 5.4L or 6.8L engine
3. Remove the air cleaner assembly.
4. Remove the battery.
5. Remove the battery tray.

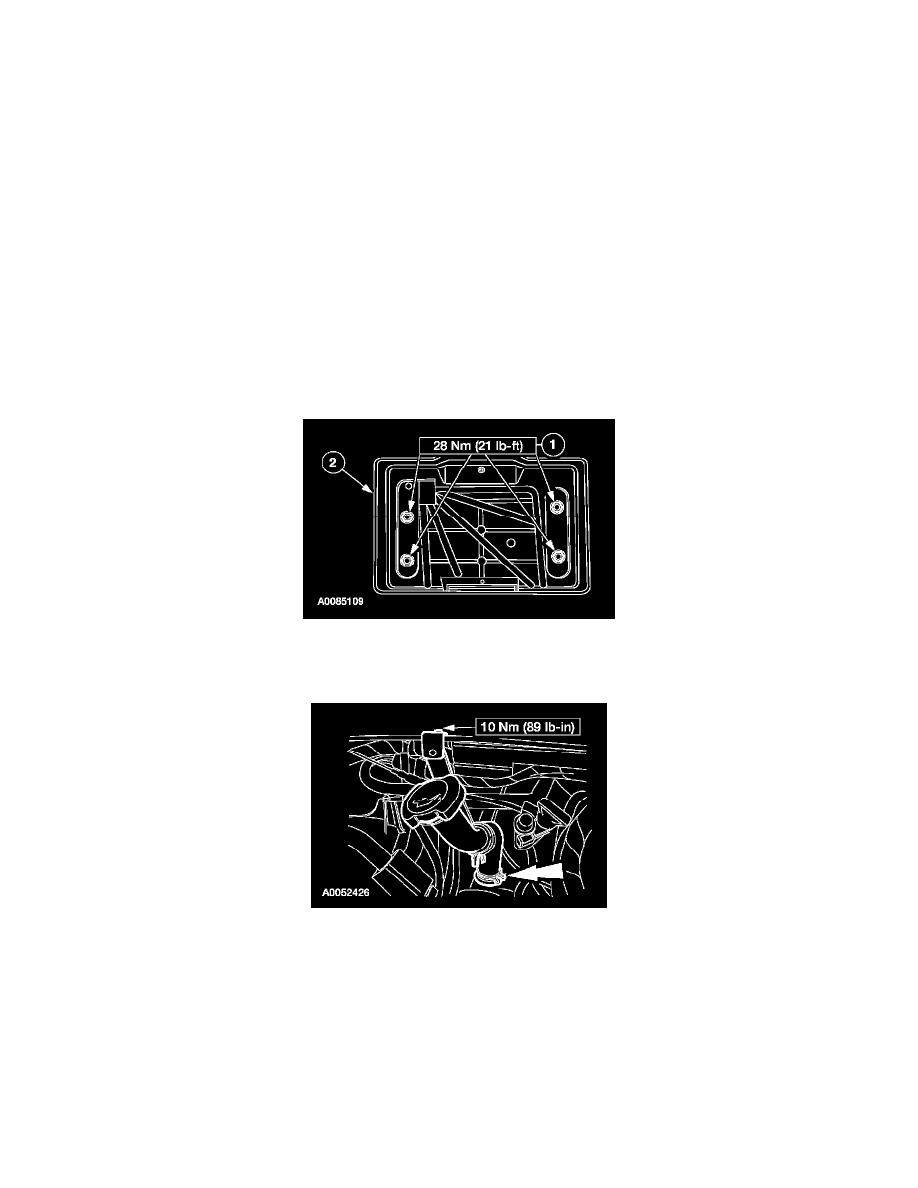

1
Remove the bolts.
2
Remove the battery tray.
6. Remove the bolt and clamp and the oil filler tube.
