E 250 V8-4.6L SOHC VIN W (2004)
Power Steering Pump: Service and Repair
Pump
Power Steering Pump

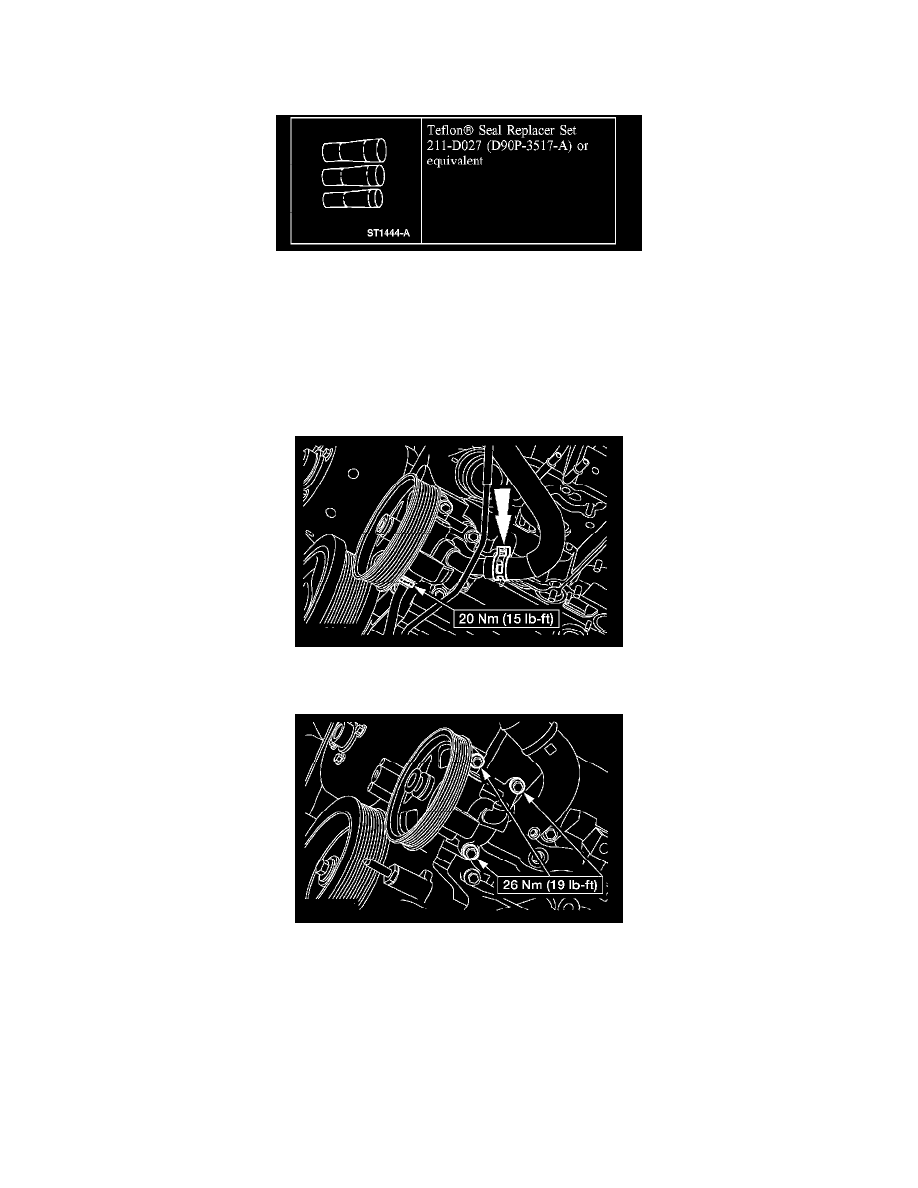

Special Tool(s)
Removal and Installation
CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power
steering components can occur.
All vehicles
1. Remove the power steering pump pulley.
2. Disconnect the power steering reservoir pump hose and pressure line from the power steering pump.
^
Drain the power steering oil reservoir.
Vehicles with 4.6L, 5.4L and 6.8L engines
3. Remove the bolts and the pump.
Vehicles with 6.0L engine
4. Remove the bolts and the pump.
