E 250 V8-4.6L SOHC VIN W (2004)
Wiper Control Module: Service and Repair
MODULE - WIPER
REMOVAL
1. Remove the engine cover.

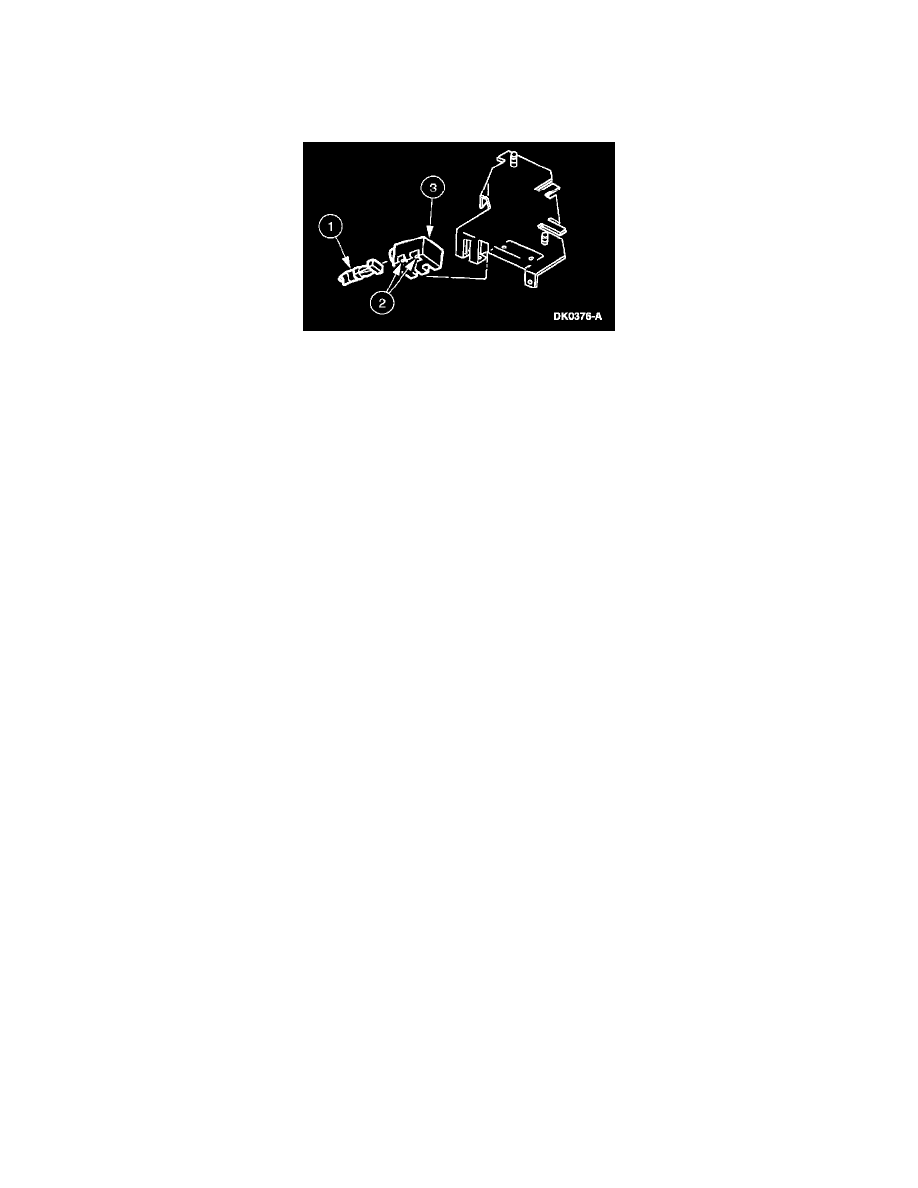

2. Remove the wiper module.
1
Disconnect the electrical connector.
2
Push the detent tabs on the wiper control module through the holes in the mounting bracket and slide the module off the bracket.
3
Remove the wiper control module.
INSTALLATION
1. To install, reverse the removal procedure.
