E 250 V8-4.6L VIN W (2006)
Throttle Body: Service and Repair

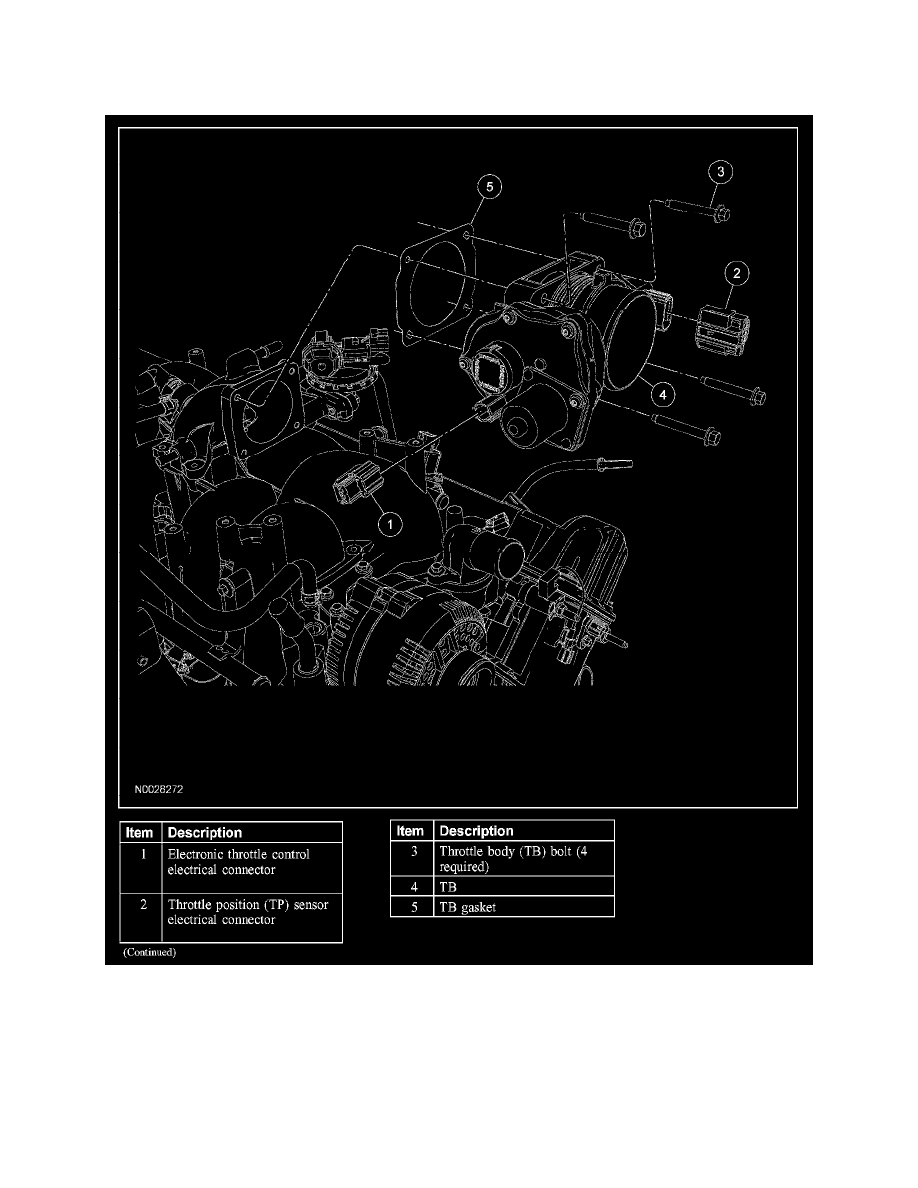

Throttle Body
THROTTLE BODY
Removal
CAUTION: The throttle body bore and plate area have a special coating and cannot be cleaned, or damage to the throttle body may occur.
1. Disconnect the battery ground cable.
2. Remove the air cleaner assembly and air cleaner outlet tube.
3. NOTE: The red clip must be pulled out before disconnecting the electrical connector.
