E 250 V8-4.6L VIN W (2006)
Accumulator: Service and Repair
1-2 Accumulator
1-2 Accumulator

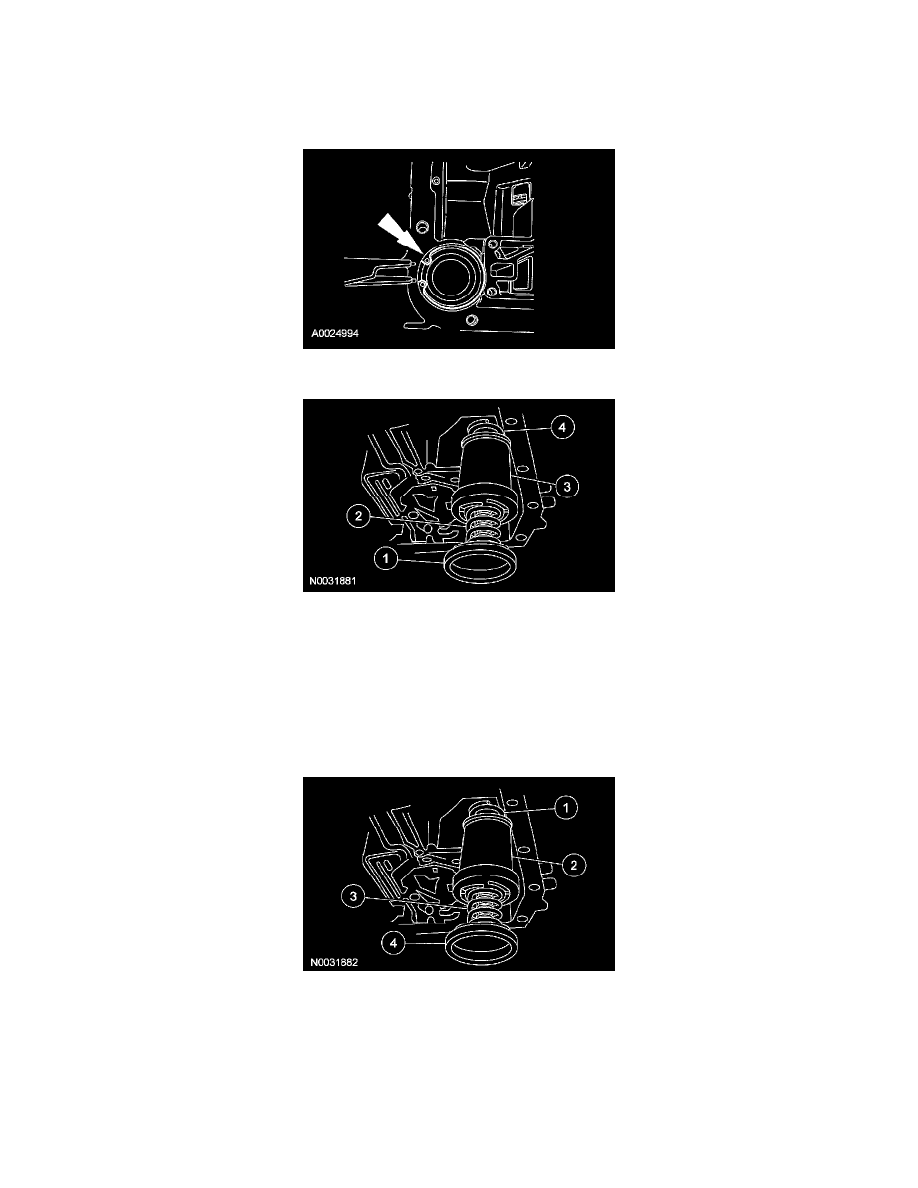

Removal
1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.
2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.
Remove the 1-2 accumulator.
1
Remove the 1-2 accumulator cover.
2
Remove the nested bottom inner and outer 1-2 accumulator springs.
3
Remove the accumulator piston.
4
Remove the upper 1-2 accumulator spring.
Installation
1. Install the 1-2 accumulator.
1
Install the 1-2 accumulator upper spring.
2
Install the accumulator piston.
3
Install the nested bottom inner and outer 1-2 accumulator springs.
4
Install the cover and seal assembly.
