Diagram Information and Instructions|Page 6524 > < Diagram Information and Instructions|Page 6522
Page 2
background image

2

= Insulation not removed

3

= Wire strands missing

4

= Intermittent signals through pierced insulation

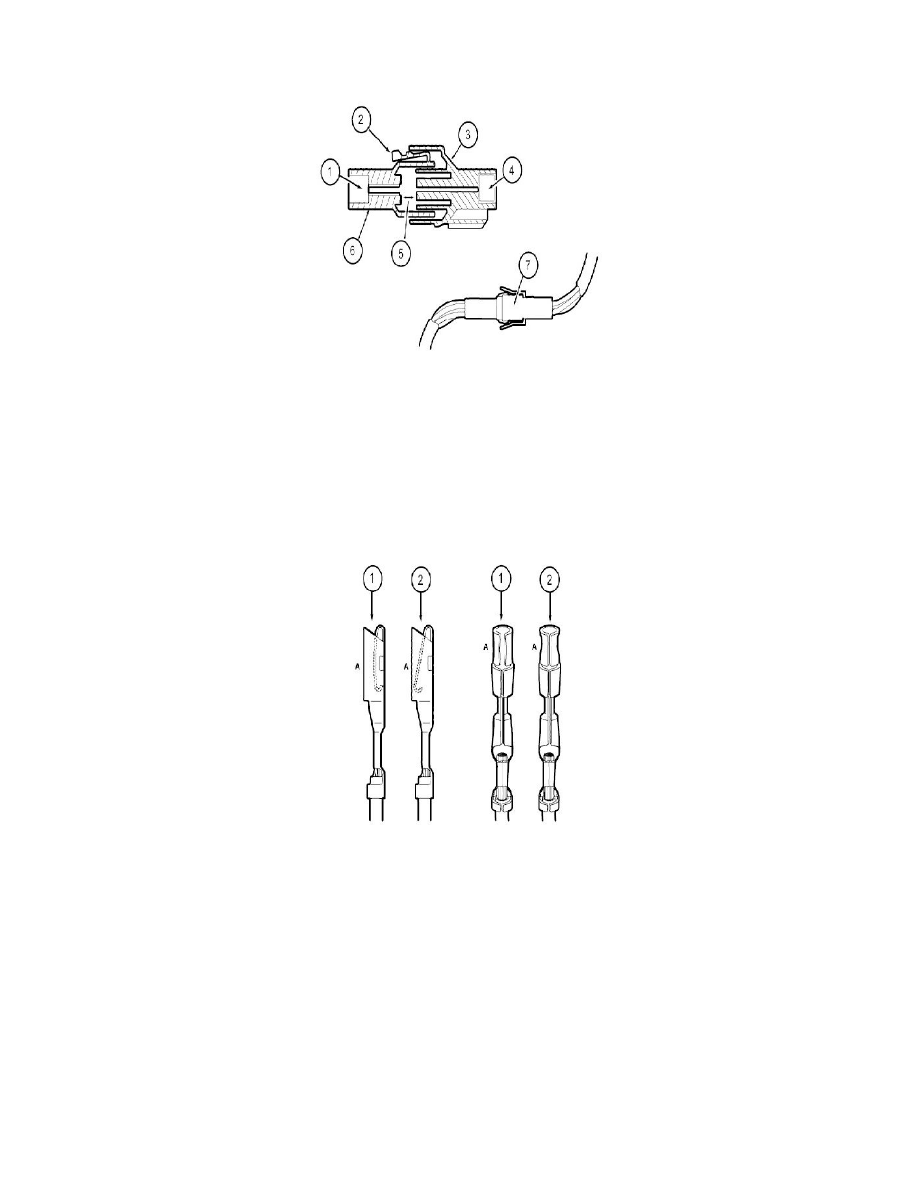

Partially mated connectors

1

= Seal

2

= Displaced tab

3

= Female half

4

= Seal

5

= Intermittent contact

6

= Male half

7

= Intermittent contact

Lock may be displaced into an unlocked position; pull on the connector to verify the lock.

Deformed (enlarged) female terminals

1

= Enlarged

2

= Normal

Any probe entering the terminal may enlarge the contact spring opening creating an intermittent signal.

Insert the correct mating terminal (Location A) from the service kit and feel for a loose fit.
