E 450 V10-6.8L (2008)
Access Cover: Service and Repair

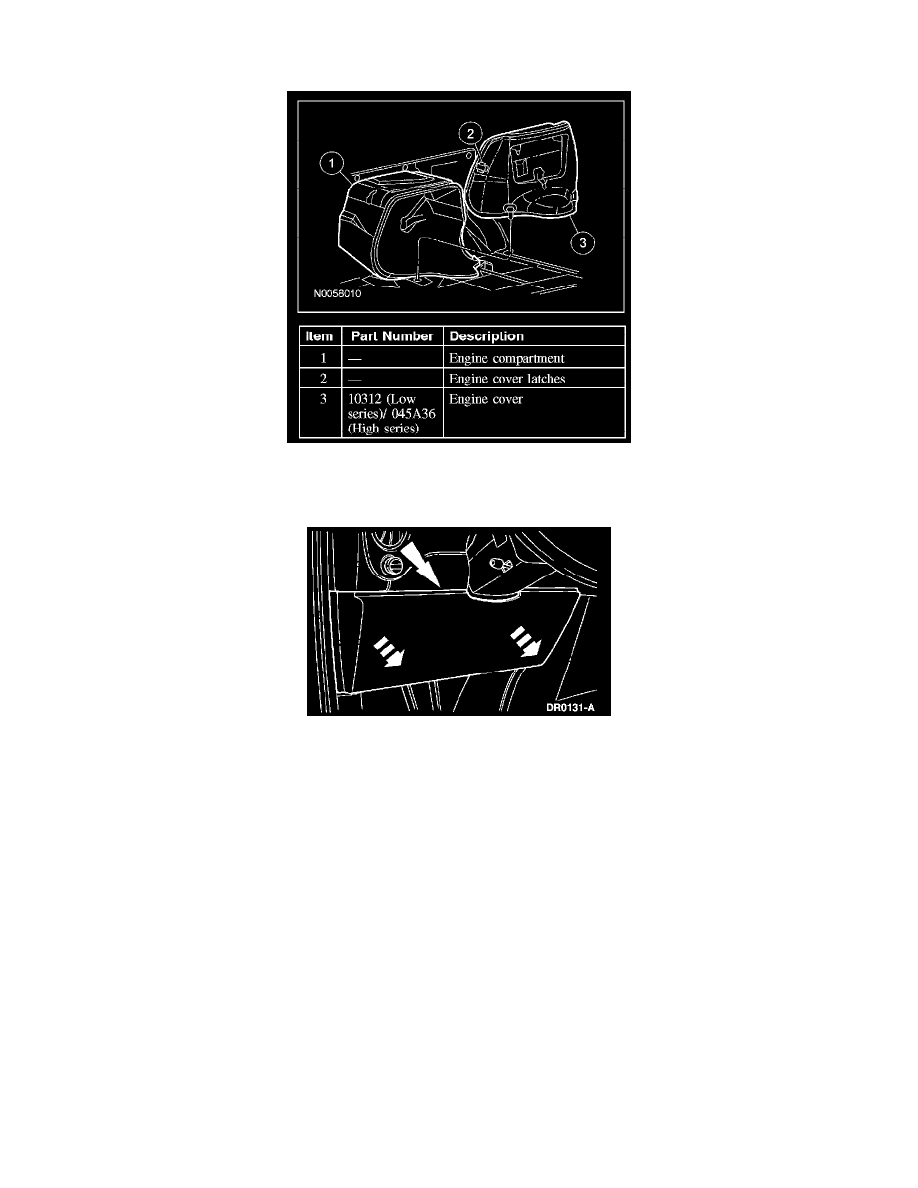

ENGINE COVER
Removal and Installation
1. Remove the console.
2. Remove the instrument panel steering column cover.
3. Remove the engine cover.
-
Unfasten the engine cover latches.
-
Lift the engine cover upward from the floor and remove from the vehicle.
4. To install, reverse the removal procedure.
