Sliding Door Latch: Service and Repair
Remote Control Door Latch- Sliding

REMOVAL

1. Remove the door trim panel and watershield.

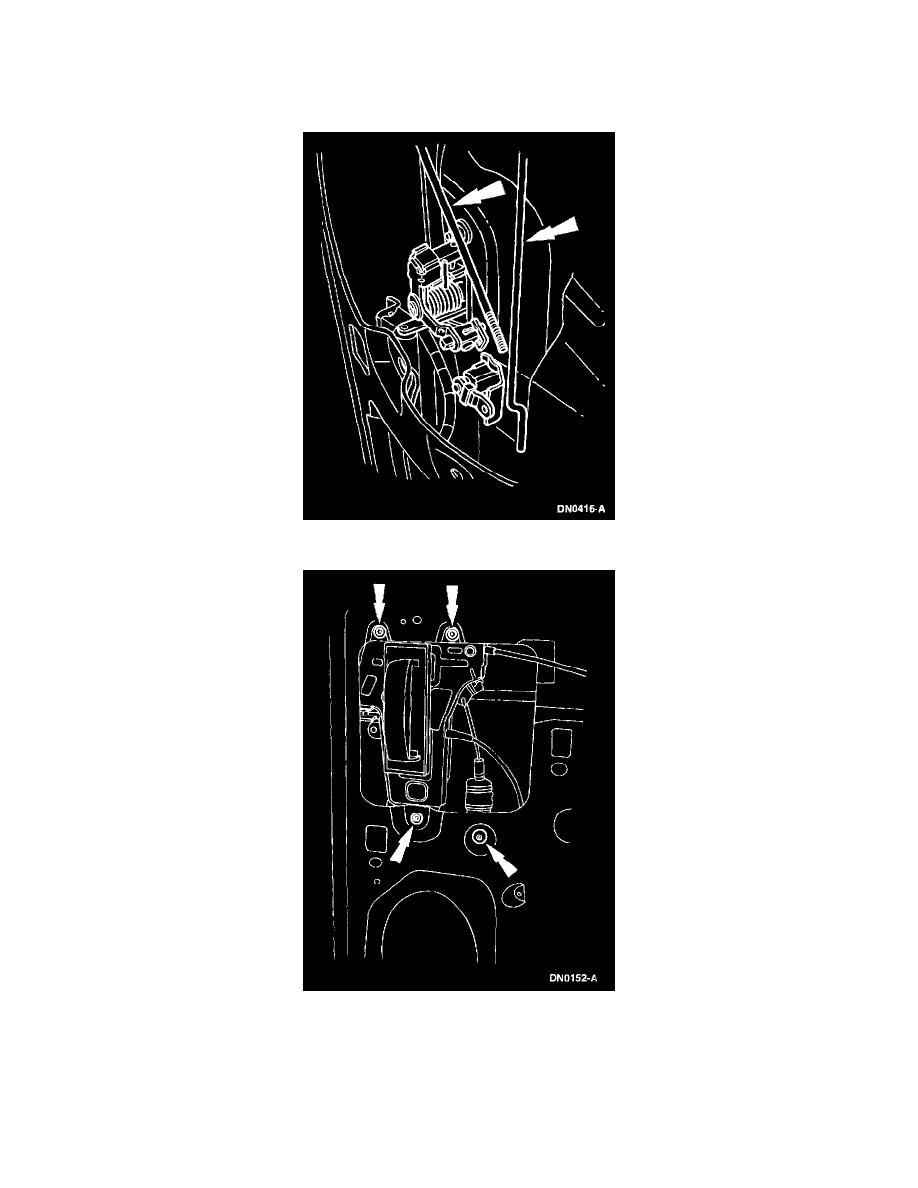

2. Disconnect the door handle rod and the lock cylinder rod

3. Remove the bolts and drill out the actuator rivet, if so equipped.
