Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

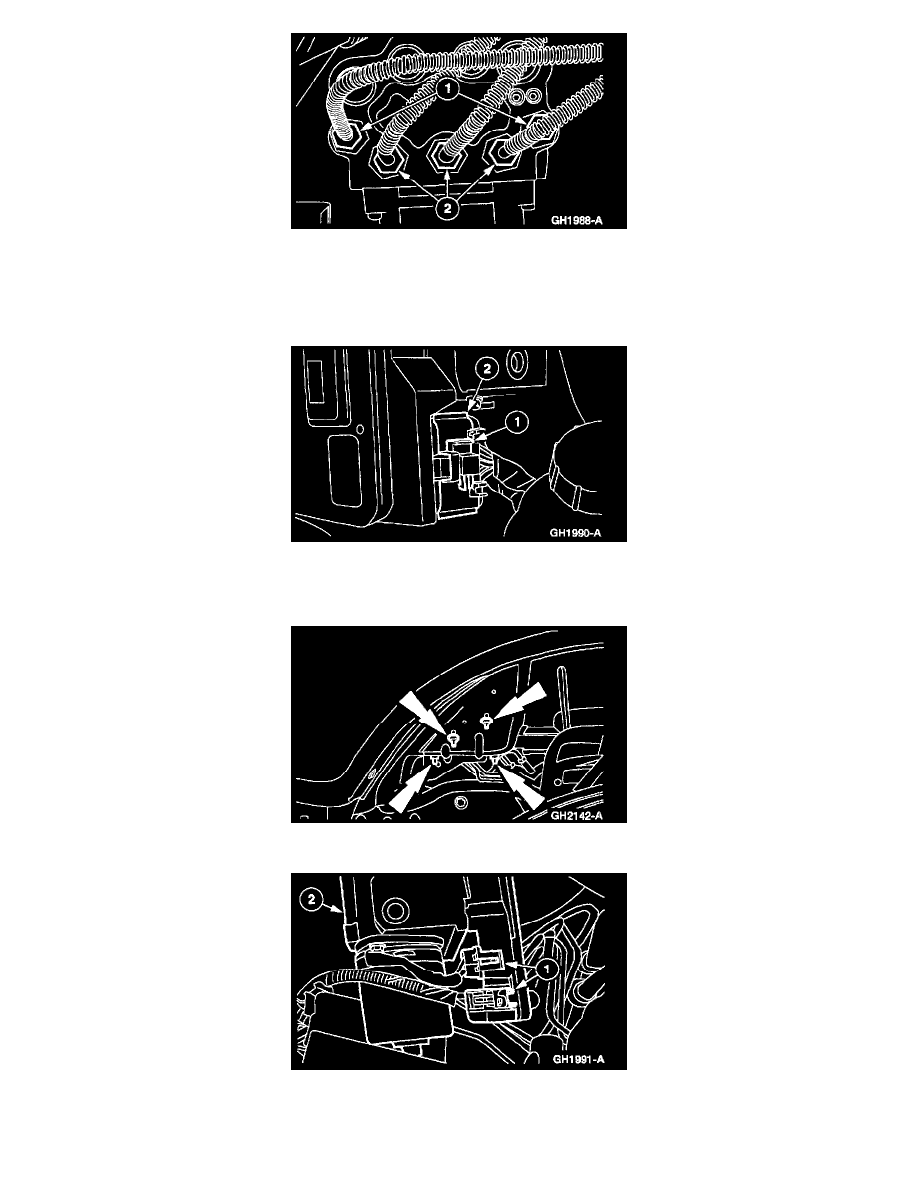

5. Note: Plug each port of the Hydraulic Control Unit (HCU) to prevent brake fluid from spilling.
Disconnect the brake lines.
1
Remove the 7/16 - 24 brake lines.
2
Disconnect the 1/2 - 20 brake lines.
6. Disconnect the anti-lock brake control module electrical connector.
1
Lift the lock tab upward.
2
Disconnect the anti-lock brake control module electrical connector.
7. Remove the HCU bracket to inner fender well nuts.
8. Remove the HCU.
1
Disconnect the anti-lock brake control module electrical connectors.
2
Remove the HCU.
