Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Brake Master Cylinder: Service and Repair
Removal and Installation
Removal
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If
brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately.
1. Disconnect the battery ground cable.
2. Note: Use a suitable suction device to drain the brake master cylinder reservoir.
Remove brake fluid from the brake master cylinder.

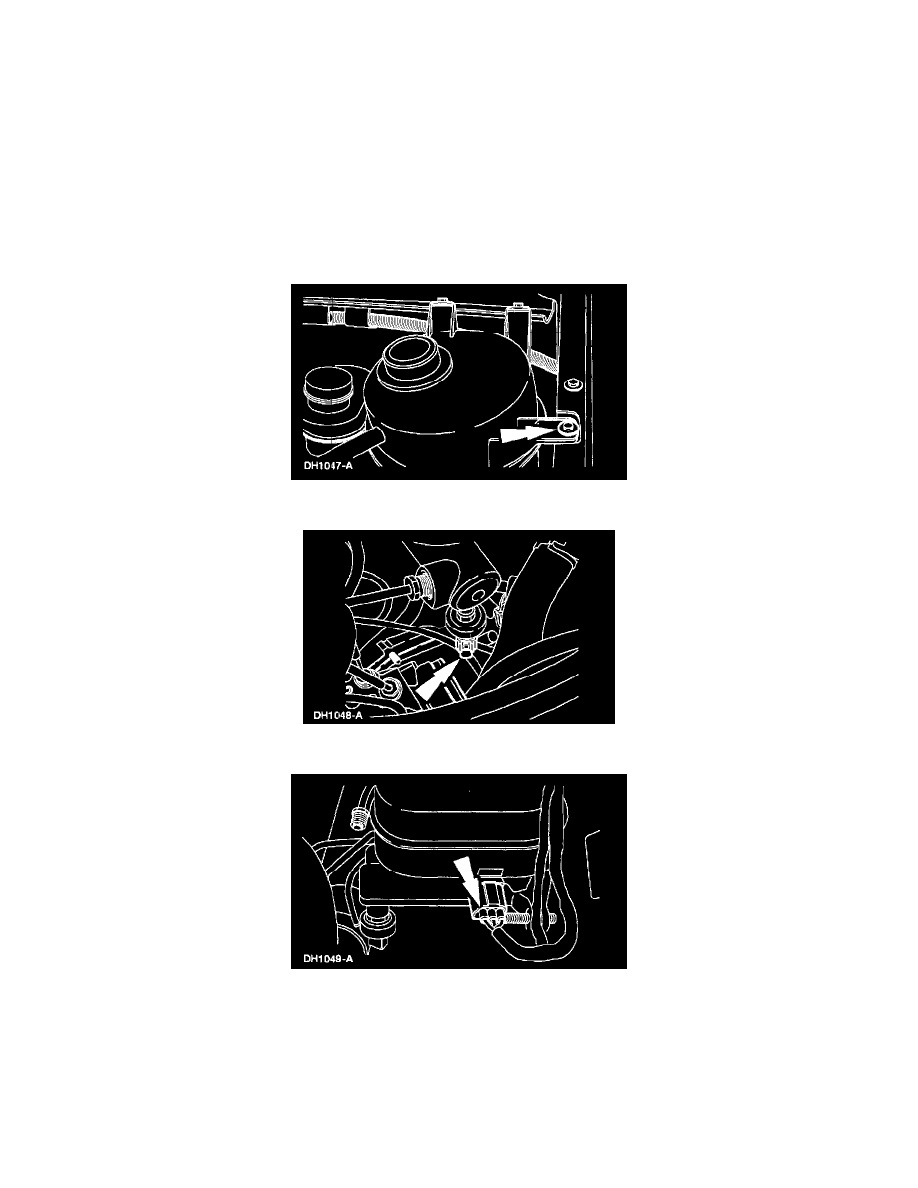

3. Remove the coolant reservoir bolts and position reservoir aside.
4. Disconnect the speed control deactivator switch connector.
5. Disconnect the fluid level sensor connector.
