Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Wheel Speed Sensor: Service and Repair
Sensor, Rear
Removal
1. Raise and support vehicle.
2. Note: C1ean off dirt and debris that may have collected around the rear anti-lock brake sensor before removal.

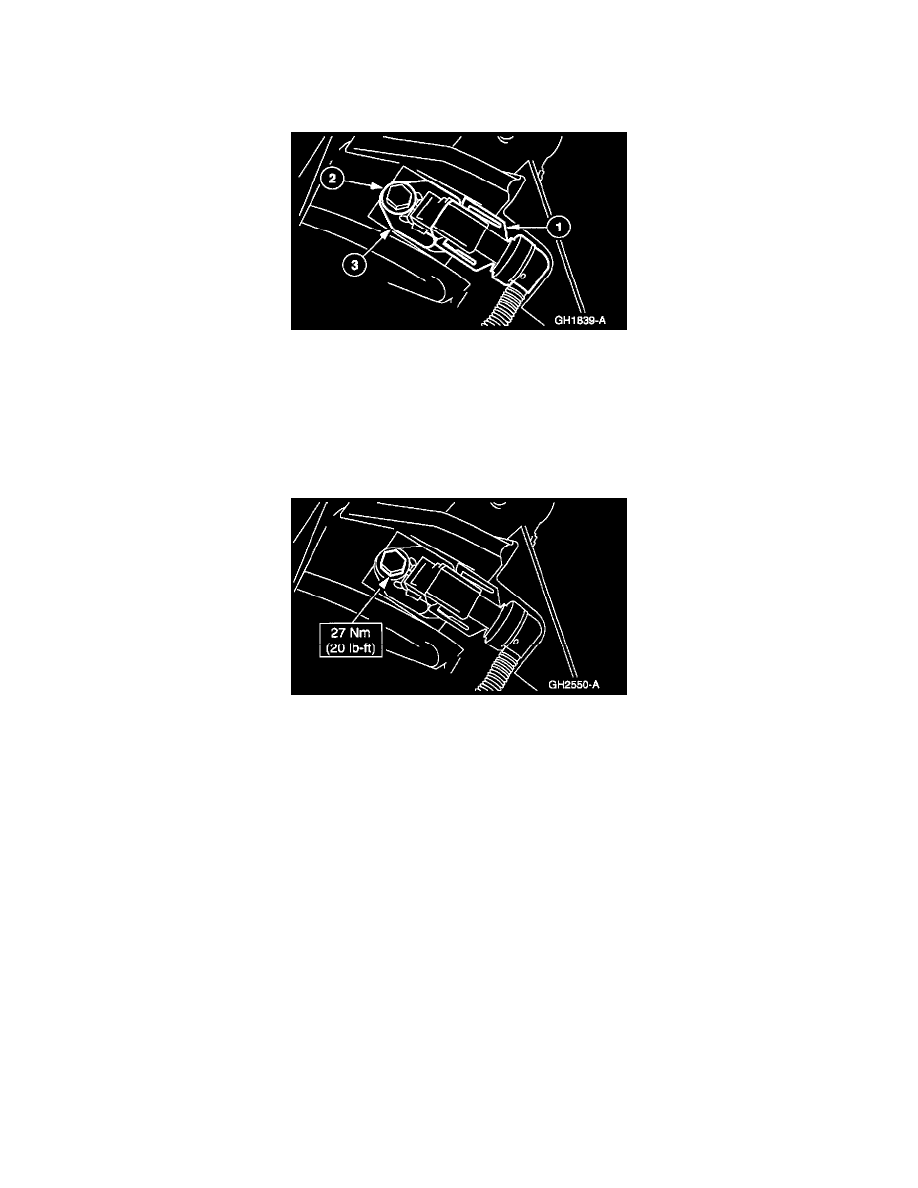

Remove the rear anti-lock brake sensor.
1
Disconnect the rear anti-lock brake sensor electrical connector.
2
Remove the bolt.
3
Remove the rear ant1 -lock brake sensor.
Installation
1. Note: Thoroughly clean the mounting surface.
Note: Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate the O-ring with SAE-75W-140 High Performance Rear Axle
Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
To install, reverse the removal procedure.
