Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

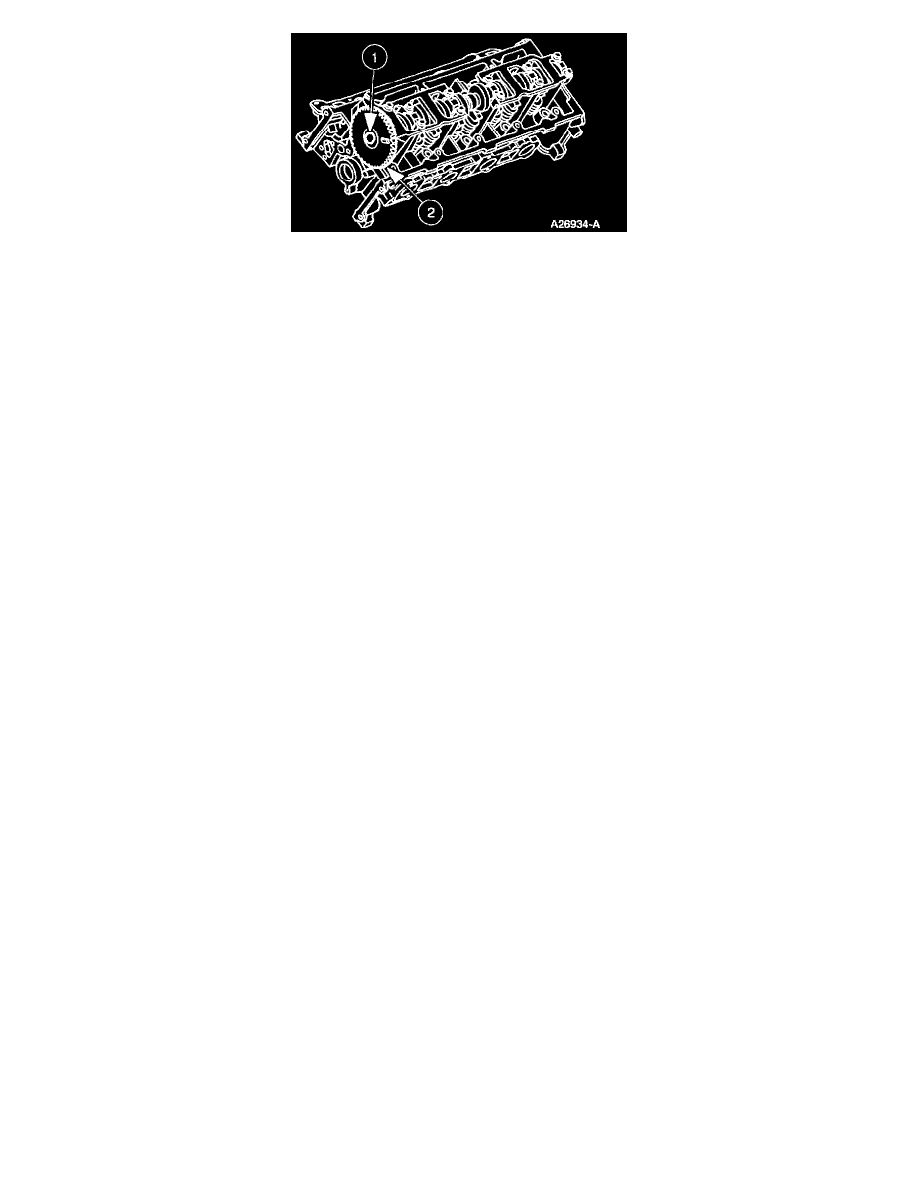

9. On engines equipped with bolt on sprockets, install the camshaft sprocket (2).
1
Install the bolt (1).
2
Tighten the bolt.
-
M10 bolt: Tighten in two stages.
-
Stage 1: Tighten to 40 Nm (30 ft. lbs.).
-
Stage 2: Tighten an additional 90 degrees.
-
M12 bolt: Tighten to 120 Nm (90 ft. lbs.).
All Vehicles
10. Install the timing chains.
11. Install the roller followers.
