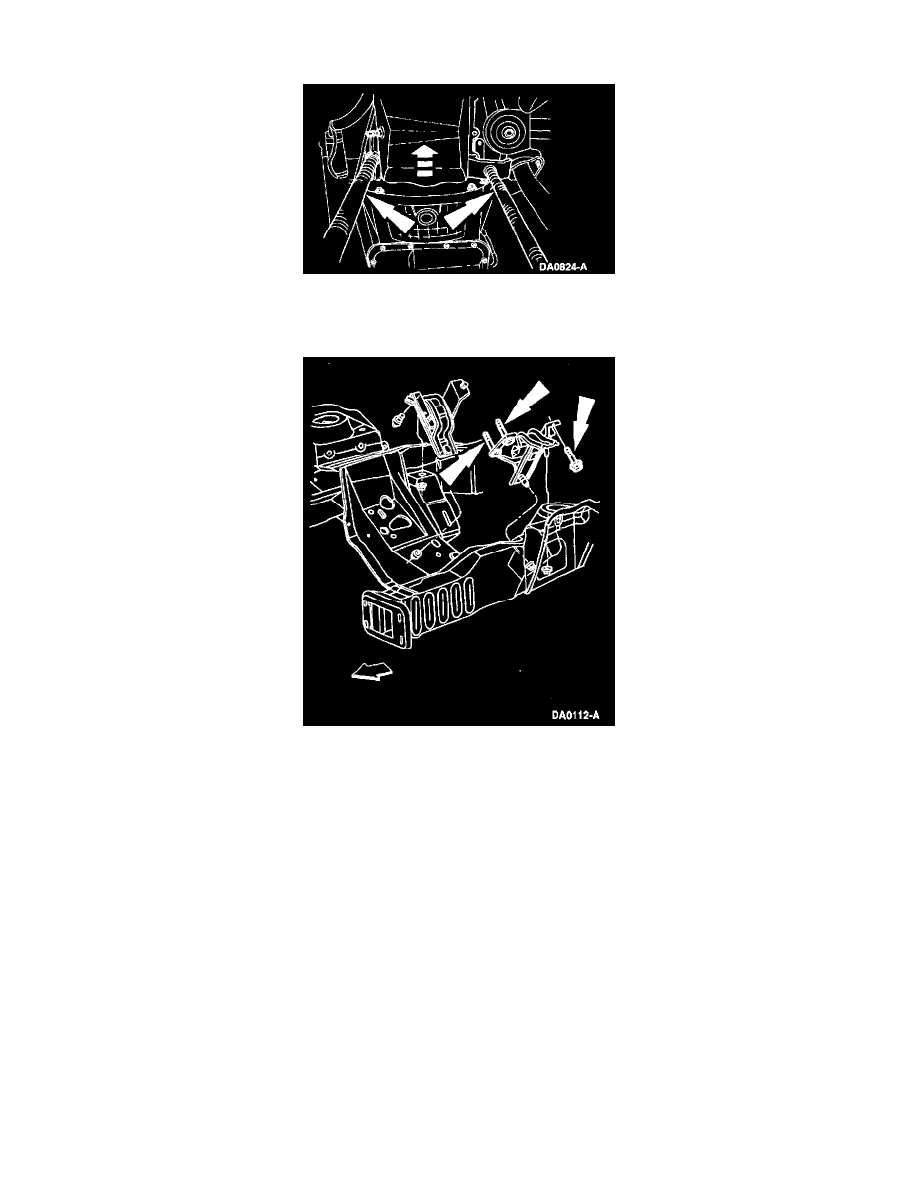

10. Remove the nuts. RH is shown; LH is similar.

11. Position two screw jacks under the rear left and right sides of the oil pan rail and raise the engine.

12. Note:  The engine is shown removed for clarity.

Remove the bolts, and remove the insulators from the vehicle.

Installation
