Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

Page 3
background image

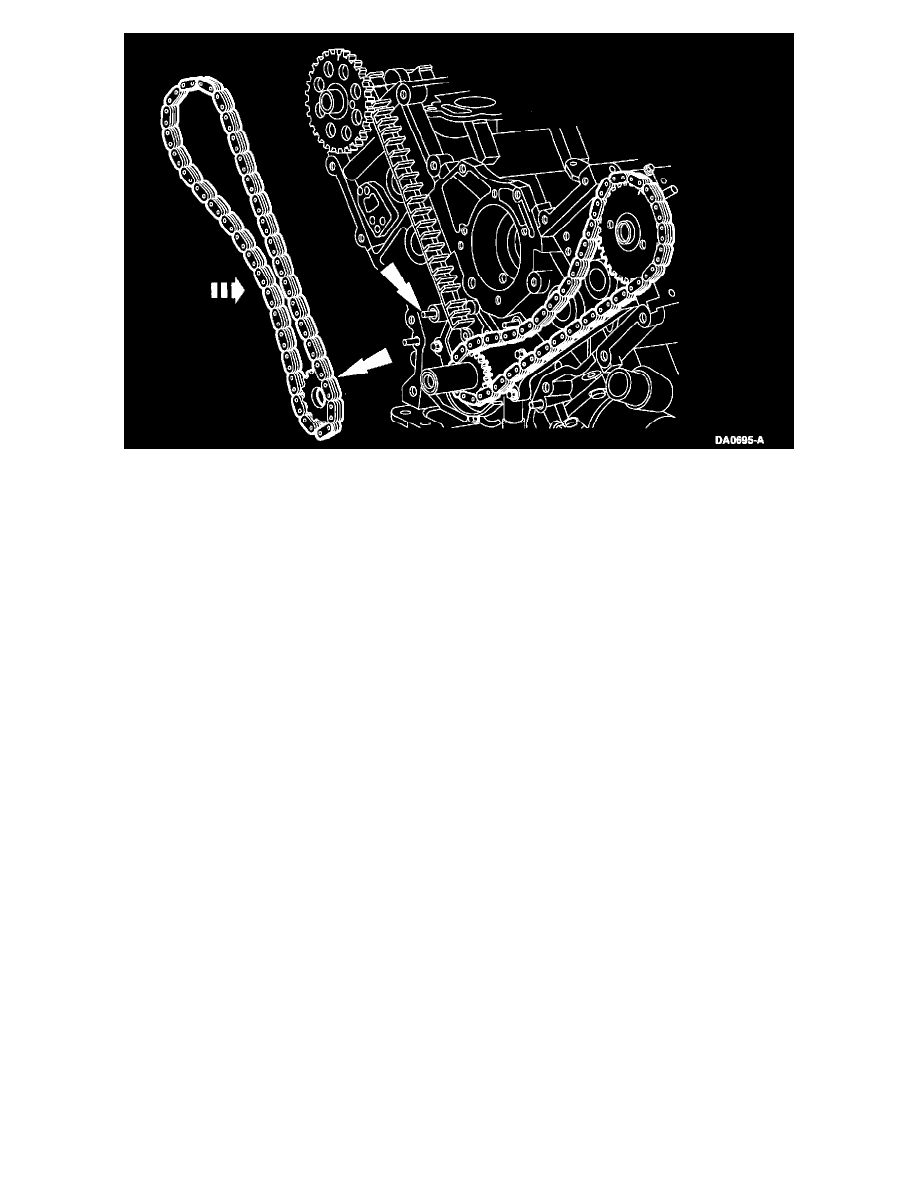

Install the RH timing chain on the camshaft sprocket. Make sure the two copper-colored links align with the camshaft sprocket timing mark.
