Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Accumulator HVAC: Service and Repair
Auxiliary Climate Control
REMOVAL
1. Perform the Refrigerant Discharging and Recovery Procedure.
2. Remove the battery. For additional information, refer to Battery.

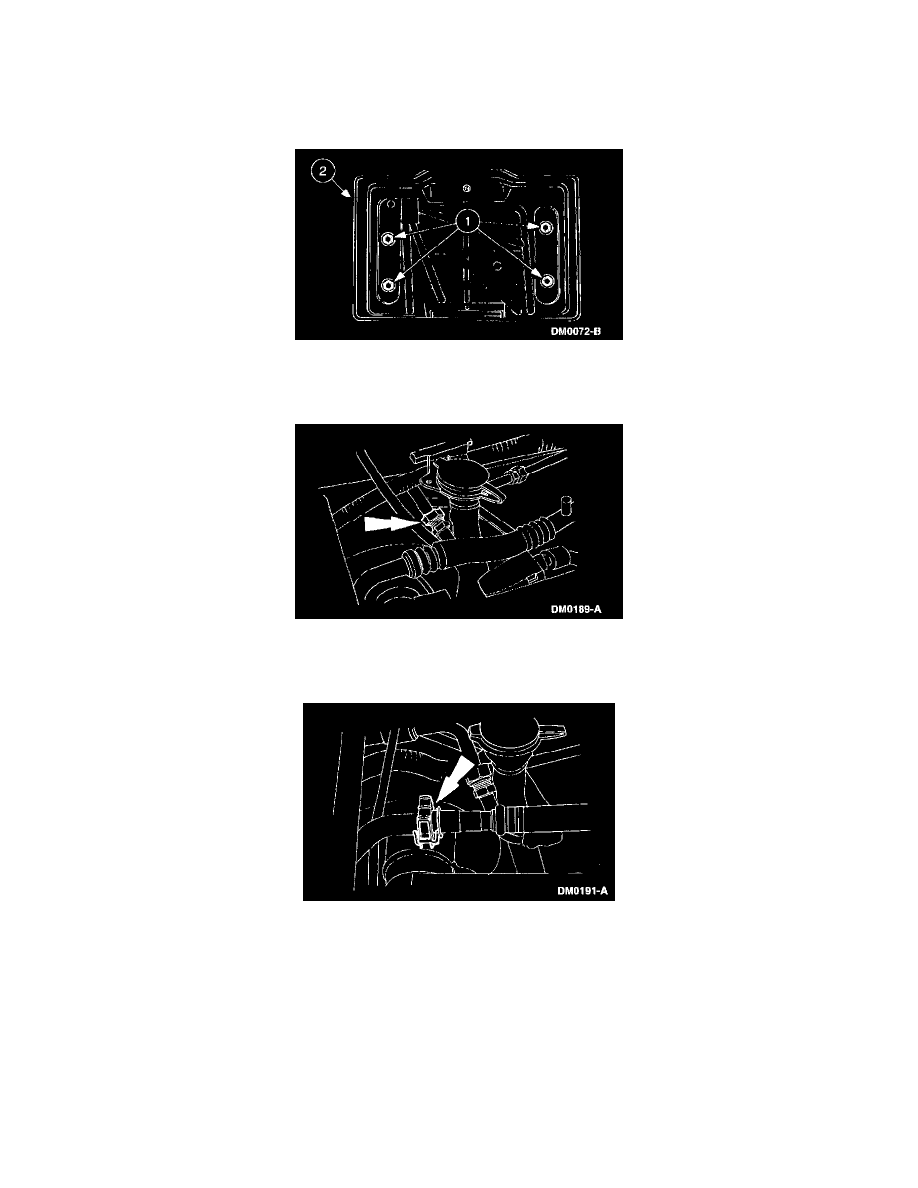

3. Remove the battery tray.
1
Remove the screws.
2
Remove the battery tray.
4. Disconnect the evaporator discharge line.
CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.
5. Disconnect the auxiliary evaporator to compressor tube spring lock coupling.
