Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

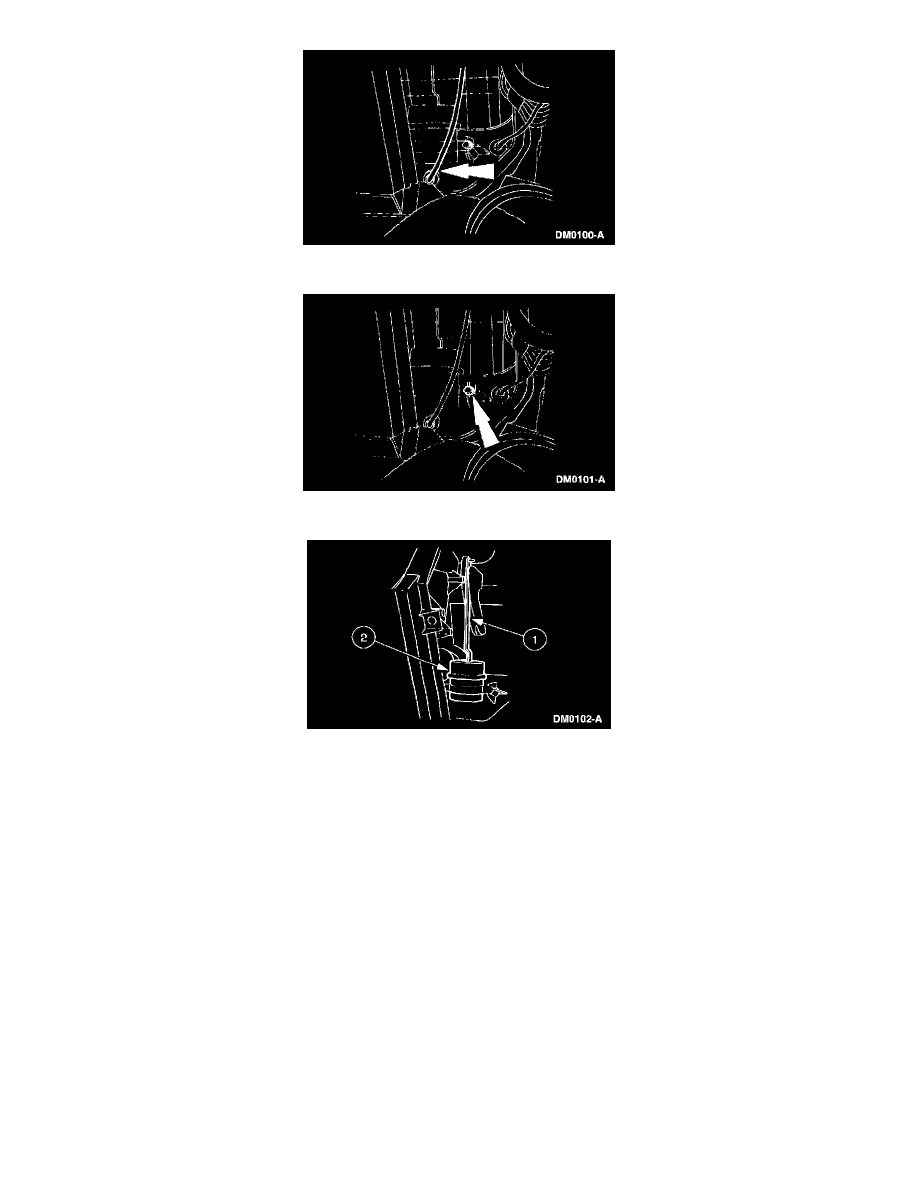

3. Remove the vacuum line.
4. Remove the two screws.
5. Remove the vacuum control motor.
1
Lift the vacuum control motor arm off of the door crank.
2
Remove the vacuum control motor.
INSTALLATION
1. Follow the removal procedure in reverse order.
Defrost/Floor Airflow Control Door Vacuum Control Motor
Defrost/Floor Airflow Control Door Vacuum Control Motor
DISASSEMBLY
