Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

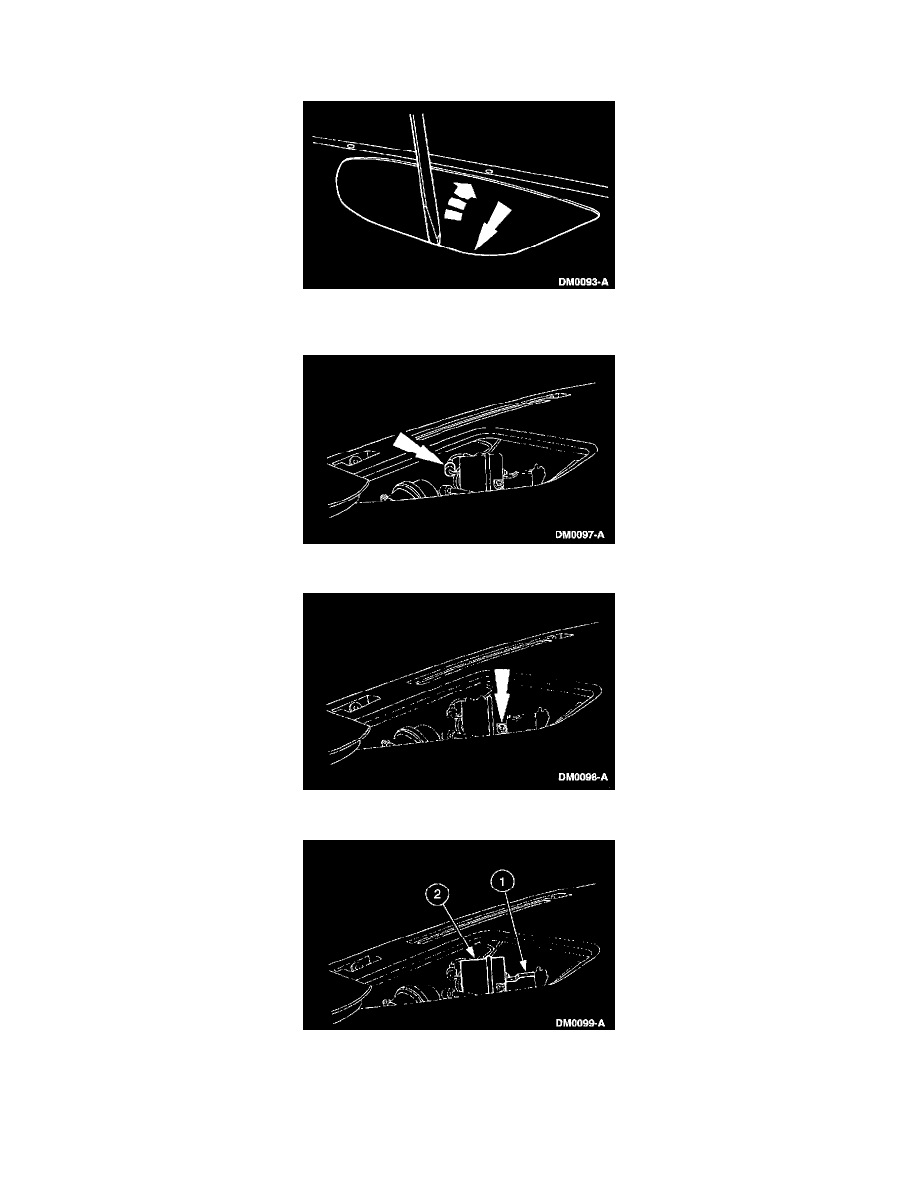

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the access panel.
^
Use a screwdriver to pry the access panel out.
3. Remove the vacuum line.
4. Remove the two screws.
5. Remove the vacuum control motor.
1
Lift up on the vacuum control motor arm to disengage it from the door crank.
2
Remove the vacuum control motor.
INSTALLATION
1. Follow the removal procedure in reverse order.
