Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Air Duct: Service and Repair
Duct - A/C Evaporator Register
REMOVAL
1. Remove the heater outlet floor duct. See: Rear Seat Floor Duct
2. Remove the steel reinforcement assembly; refer to: Dash Board.

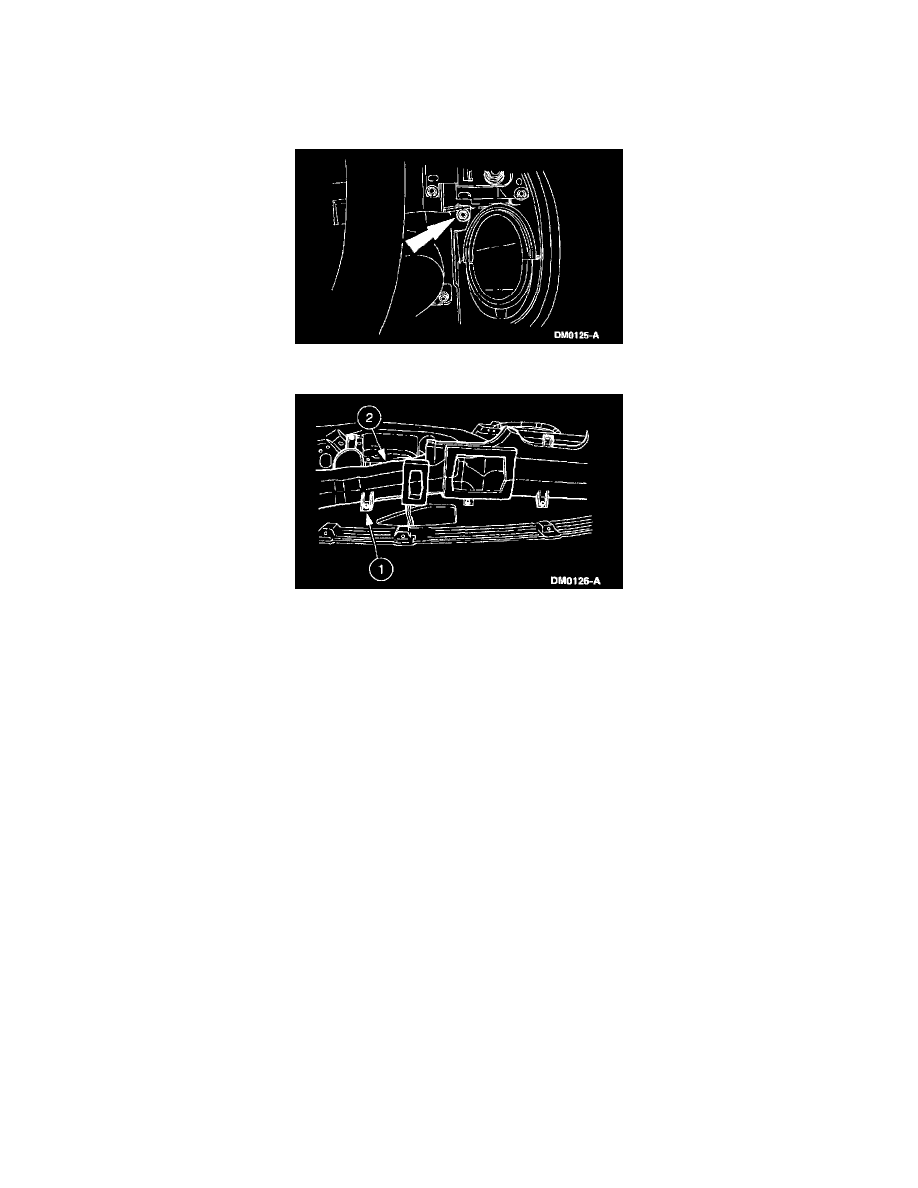

3. Remove the screw.
4. Remove the A/C evaporator register duct
1
Remove the screw.
2
Remove the A/C evaporator register duct.
INSTALLATION
1. Follow the removal procedure in reverse order.
