Control Assembly: Service and Repair
Main Climate Control

REMOVAL

1. Disconnect the battery ground cable.
2. Remove the center trim panel; refer to: Dash Board.

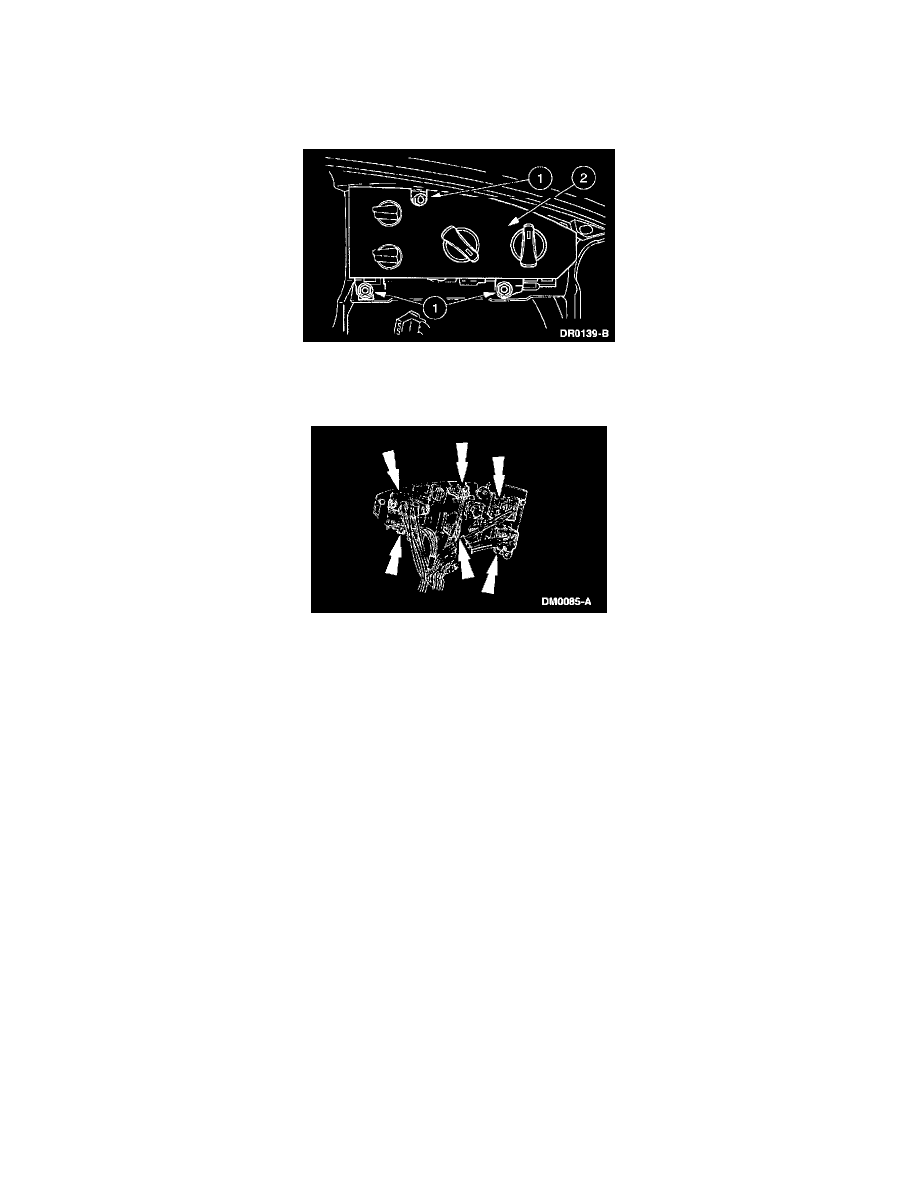

3. Remove the control assembly.

1

Remove the screws.

2

Remove the control assembly.

4. Disconnect the vacuum harness and electrical connectors.

^

Disconnect the vacuum harness connector.

^

Disconnect the electrical connectors.

5. Remove the control assembly.

INSTALLATION

1. Follow the removal procedure in reverse order.
