Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

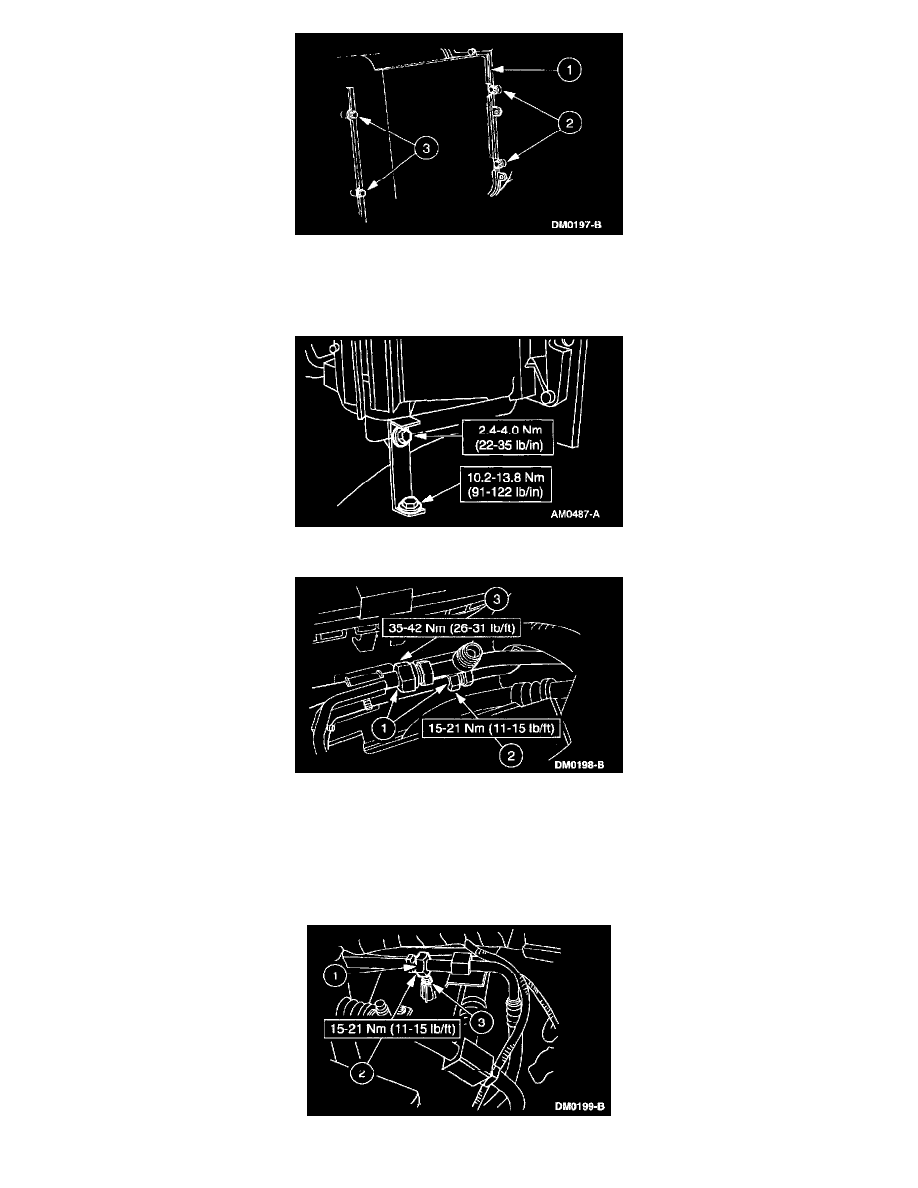

3. Install the evaporator cover.
1
Install the evaporator cover.
2
Install the five screws.
3
Install the six screws.
4. Install the evaporator core housing support bracket and screws.
5. Connect the condenser core refrigerant lines.
1
Lubricate the new O-ring seals with PAG Refrigerant Compressor Oil (R- 134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or
equivalent meeting Ford specification WSH-M1C231-B and install the O-ring seals.
2
Connect the condenser to evaporator tube.
3
Connect the compressor discharge line.
CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.
6. Connect the condenser to evaporator tube.
