Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

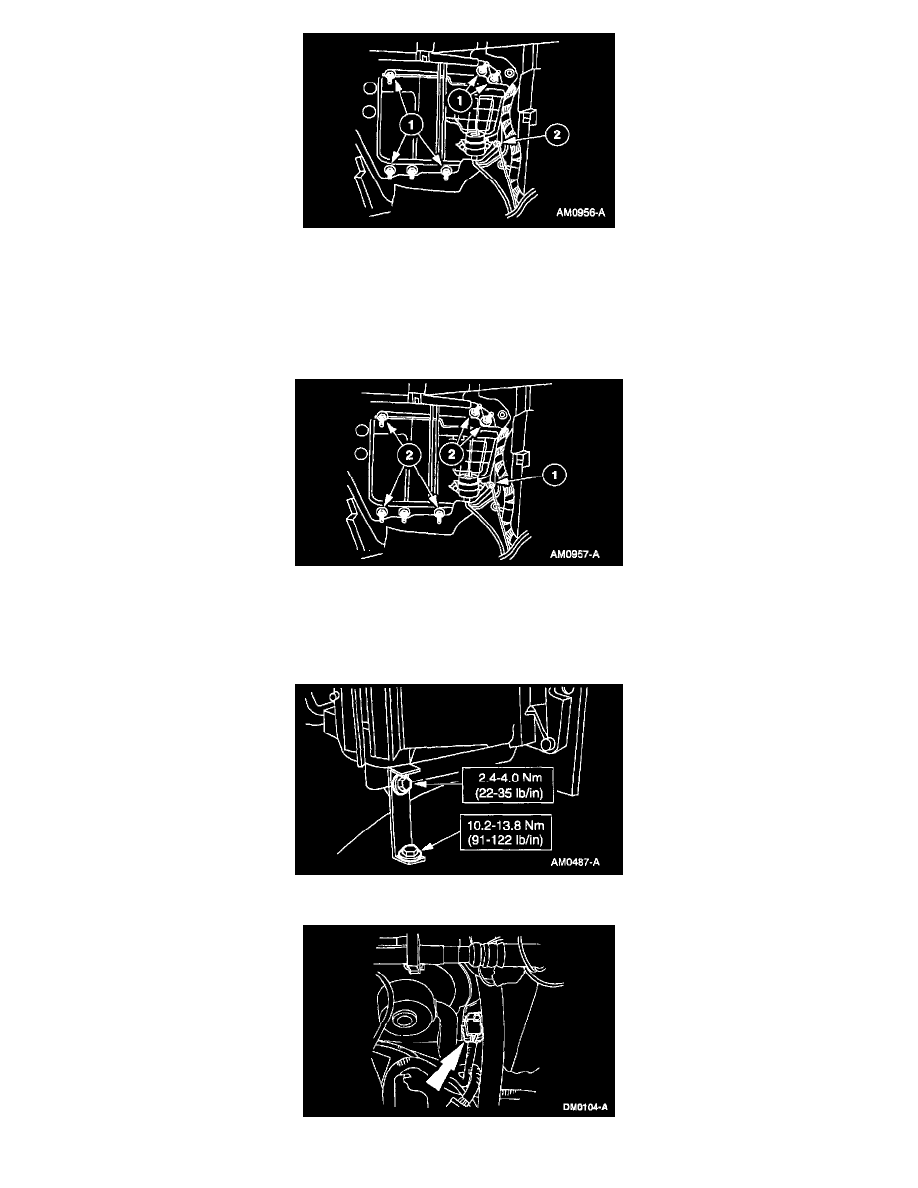

15. Remove the evaporator core housing.
1
Remove the seven nuts.
2
Remove the evaporator core housing.
NOTE: The use of an assistant may be necessary to install the evaporator core housing.
INSTALLATION
1. Install the evaporator core housing.
1
Install the evaporator core housing.
2
Install the seven nuts.
NOTE: The use of an assistant may be necessary to install the evaporator core housing.
2. Install the evaporator core housing support bracket and screws.
3. Connect the heater blower motor switch resistor electrical connector.
