Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Blower Motor Switch: Service and Repair

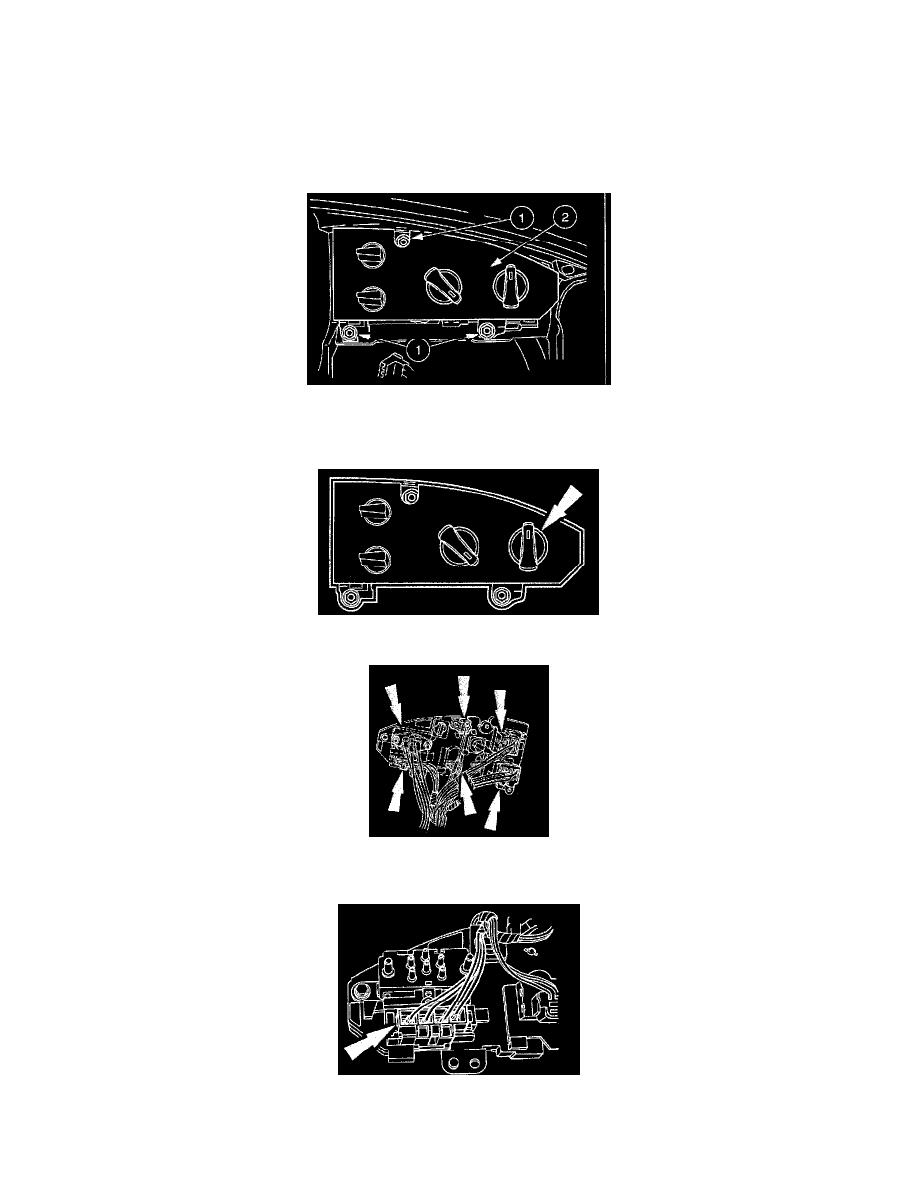

REMOVAL AND INSTALLATION
Control Assembly
Removal
1. Disconnect the battery ground cable
2. Remove the center trim panel
3. Remove the control assembly.
a. Remove the screws.
b. Remove the control assembly.
4. Remove the A/C-heater function selector switch knob.
5. Disconnect the vacuum harness and electrical connectors.
6. Remove the control assembly.
7. Disconnect the A/C-heater function selector switch connector.
