Interior Light Switch: Service and Repair

REMOVAL

1. Remove the front door trim panel.

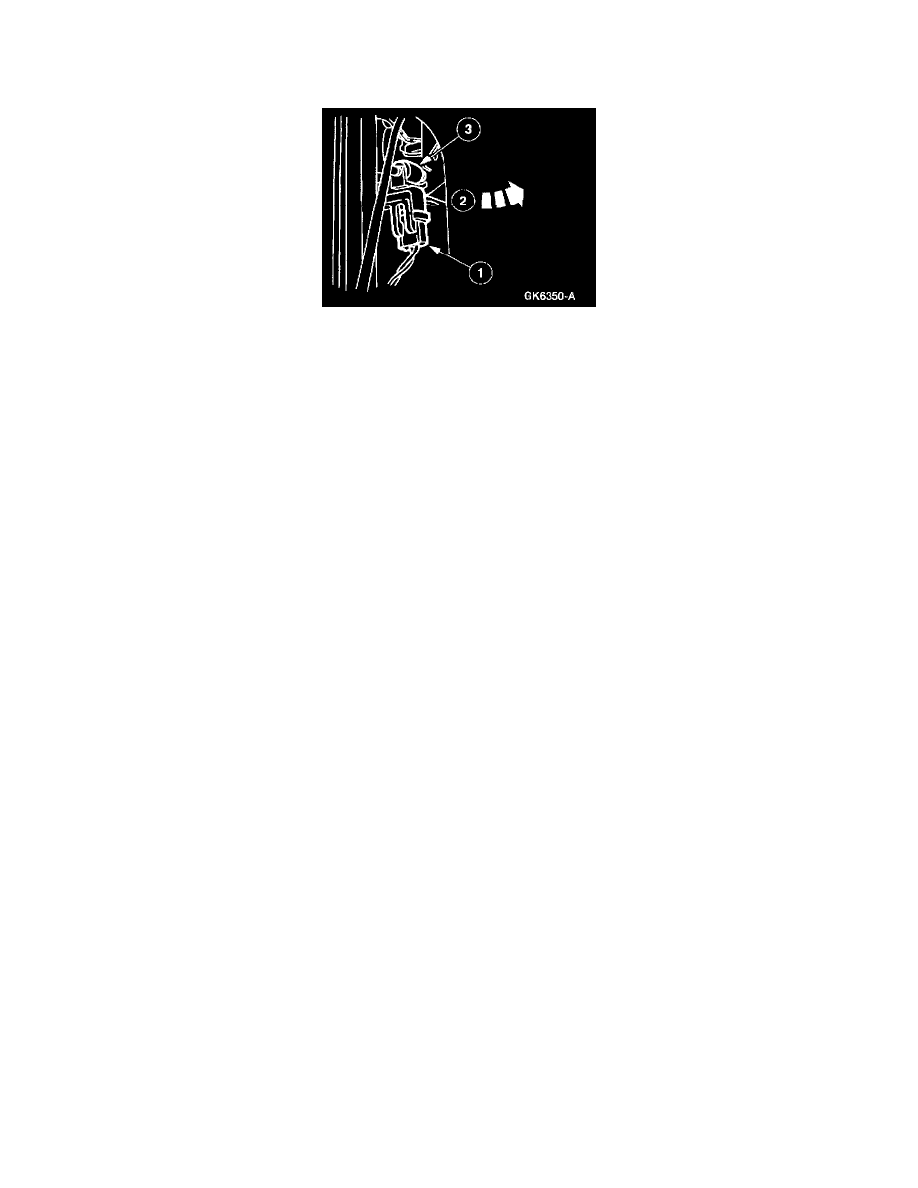

2. Remove the interior lamp switch.

1. Disconnect the electrical connector.
2. Rotate switch counterclockwise.
3. Remove the interior lamp switch.

INSTALLATION

1. To install, reverse the removal procedure.
