Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)

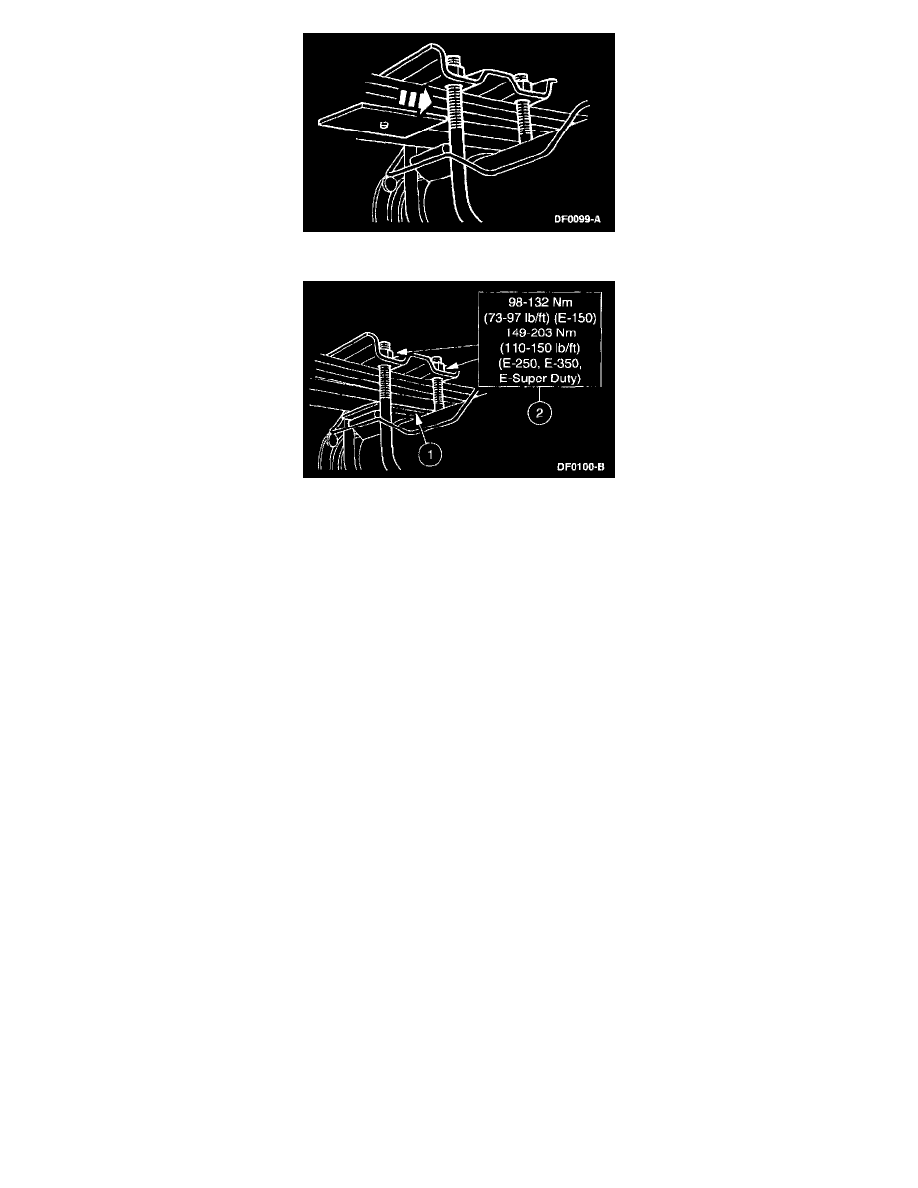

4. Insert the shim between the rear spring and the spring seat.
5. Complete the shim installation.
1. Position the shim so the tic bolt through the spring leaves is in the shim recess, the stud on the bottom of the shim is in the spring seat recess,
and the shim is aligned with the rear spring.
2. Tighten the four U-bolt nuts.
6. Lower the vehicle.
