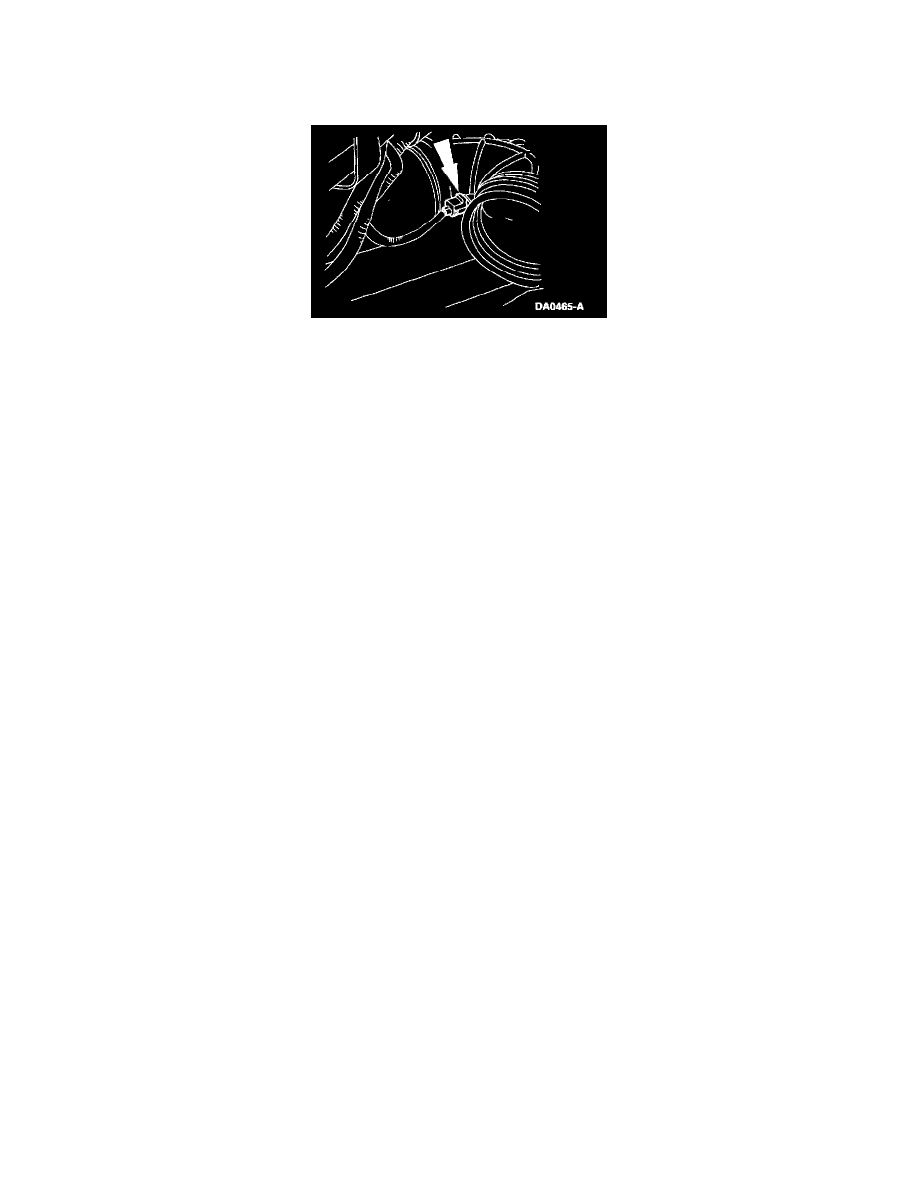

Intake Air Temperature Sensor: Service and Repair

REMOVAL

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the air cleaner assembly. For additional information, refer to Fuel Delivery and Air Induction.

3. Disconnect the Intake Air Temperature (IAT) sensor electrical connector and remove the sensor.

INSTALLATION

1. To install, reverse the removal procedure.
