Econoline E250 3/4 Ton V8-4.6L SOHC VIN W (2000)
Vehicle Speed Sensor: Service and Repair
4R100 Transmission
Vehicle Speed Sensor (VSS)-7.3L Diesel
Note: VSS only applies to 7.3L Diesel engines

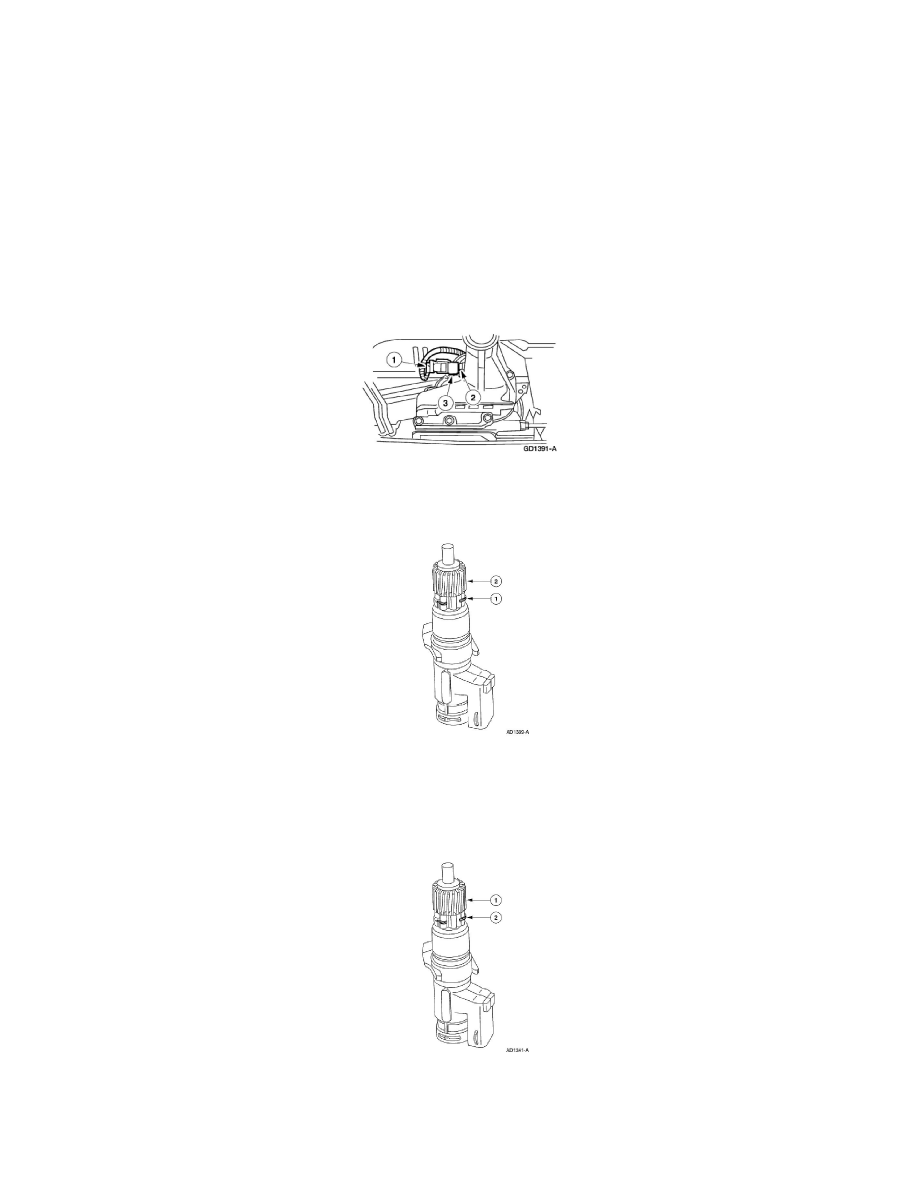

REMOVAL
1. Raise and support the vehicle.
2. Remove the vehicle speed sensor (VSS).
1. Disconnect the VSS electrical connector.
2. Remove the bolt.
3. Remove the VSS.
3. Remove the vehicle speed sensor driven gear.
1. Remove the retaining clip.
2. Remove the driven gear.
INSTALLATION
1. Install the vehicle speed sensor driven gear.
1. Install the driven gear.
2. Install the retaining clip.
2. Install the vehicle speed sensor (VSS).
1. Install the VSS.
2. Install the bolt.
3. Connect the electrical connector.
